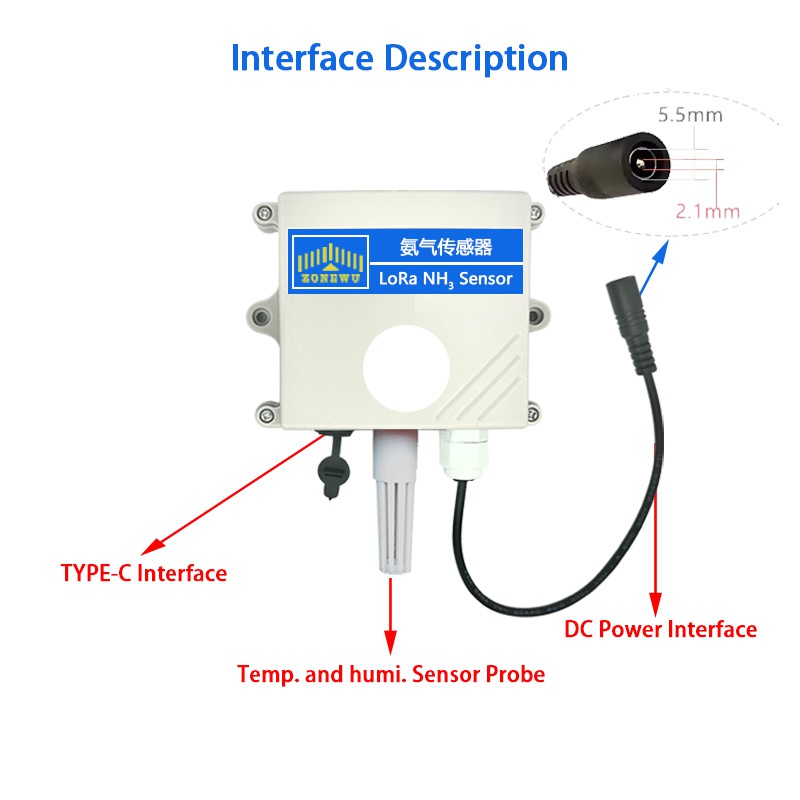

xiamen ZoneWu LoRaWAN NH3 sensor is a new type of IoT sensor made with LoRa wireless technology. It contains ammonia gas, temperature and humidity sensors, which can measure the ammonia gas concentration, temperature and humidity in the environment in real time, and is sensitive, accurate and stable.
Product Model :
LW300-NH3Power Supply Mode :
Battery or External DCFrequency :
CN470/IN865/EU868/RU864/US915/AU915/ KR920/AS923-1&2&3&4MAC Version :
LoRaWAN 1.0.3Mode :
OTAA Class A/CWeight :
120gEnvironmental LoRaWAN NH3 Sensor
xiamen ZoneWu LoRaWAN NH3 sensor is great. It can collect data on ammonia in the environment, monitor ammonia concentration changes at all times, and send this data out. It is a wireless gas sensor for the Internet of Things.
xiamen ZoneWu LoRaWAN Gas Sensor NH3 Sensor Features:
LoRaWAN ammonia sensor is a wireless IoT gas sensor that can collect, monitor and transmit data, mainly used to detect ammonia in the environment.
It contains an ammonia sensor, a two- or three-electrode electrochemical sensor, and a high-performance microprocessor.

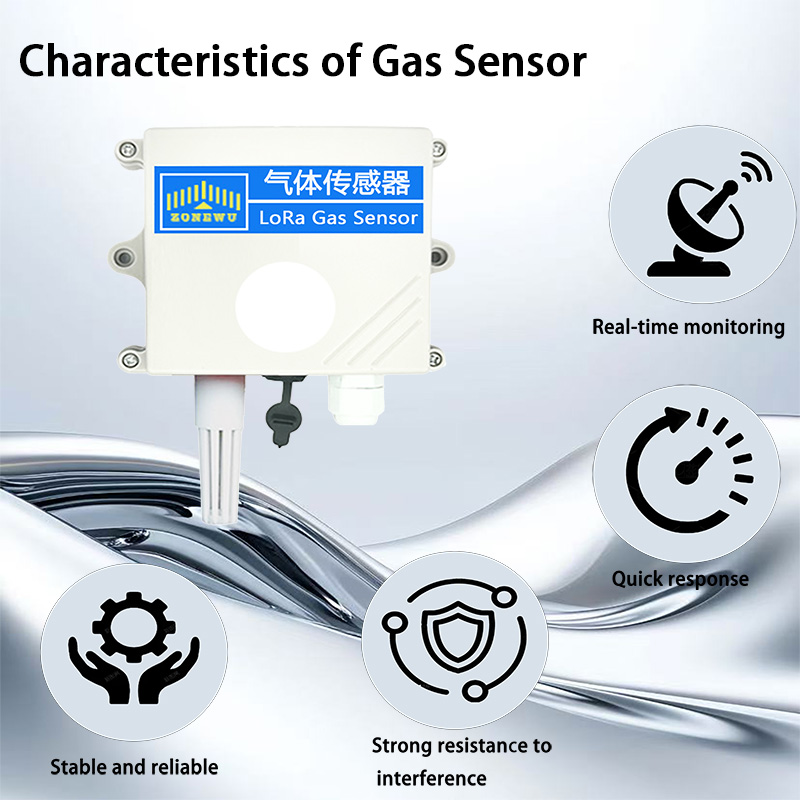

High sensitivity, high resolution, good stability, and strong interference resistance.
It supports the standard LoRaWAN protocol, enabling long-distance communication and convenient data transmission.
It can be used in many places, such as chemical industry, smart public toilets, automobile industry, breeding places, atmospheric monitoring, water quality monitoring and environmental protection.
Fully functional, excellent performance, wide application, and can meet the needs of ammonia monitoring in many scenarios.
Technical Parameters
|
Power Supply |
5~28VDC |
|

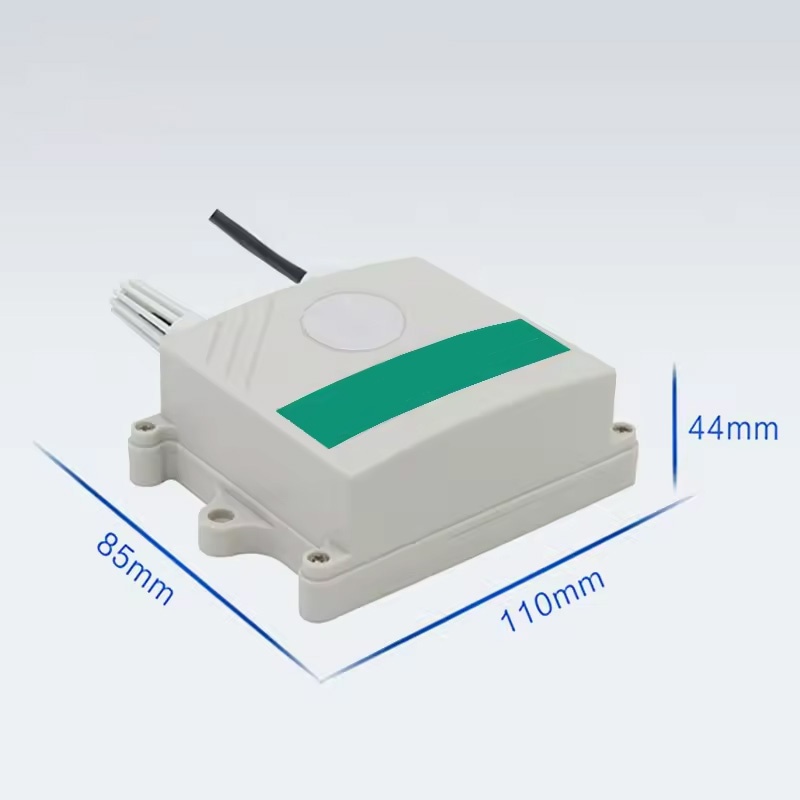

Weight |
120g |
|
Operating Emperature |
-20℃～60℃ |
|
Measuring Principle |
Electrochemistry |
|
Lifespan |
<2 years |
|
Measuring Range
|
NH3:0～50 ppm |
|
Temp:-40~+80 ℃ |
|
|
Humi:0~99.9 %RH |
|
|
Frequency |
CN470/IN865/EU868/RU864/US915/AU915/
KR920/AS923-1&2&3&4 |
|
Mode |
OTAA Class A/C(Default: Class C) |
|
Reporting cycle |
External power supply:5min(Default reporting cycle) Report after preheating for 3 minutes when powered on |
|
Communication Protocol |
LoRaWAN,LoRa TDMA Networking |
|
Equipment information (Reference) |
AppEUI：0000000000000001 DevEUI：aaaa202404150001 AppKey：00001111222233334444555566667777 MAC Version：LoRaWAN 1.0.3 |
Product Applications
Common knowledge of NH3
Does ammonia have a smell
Yes, ammonia has a strong irritating odor. In common fertilizers and toilet cleaners in life, if ammonia contains it, it can be smelled when volatile.
What is the use of ammonia in industry
It is widely used in the manufacture of fertilizers, is also used in the production of nitric acid, refrigerants, and is also an important raw material in pharmaceutical, plastic, synthetic fiber and other industries.
Why use ammonia sensors
Because ammonia leakage is very harmful, the use of ammonia sensor can monitor the concentration of ammonia in the environment in real time, and once it exceeds the standard, thereby preventing accidents such as poisoning and explosion, ensuring the safety of personnel and the normal conduct of production.
Application Scenarios

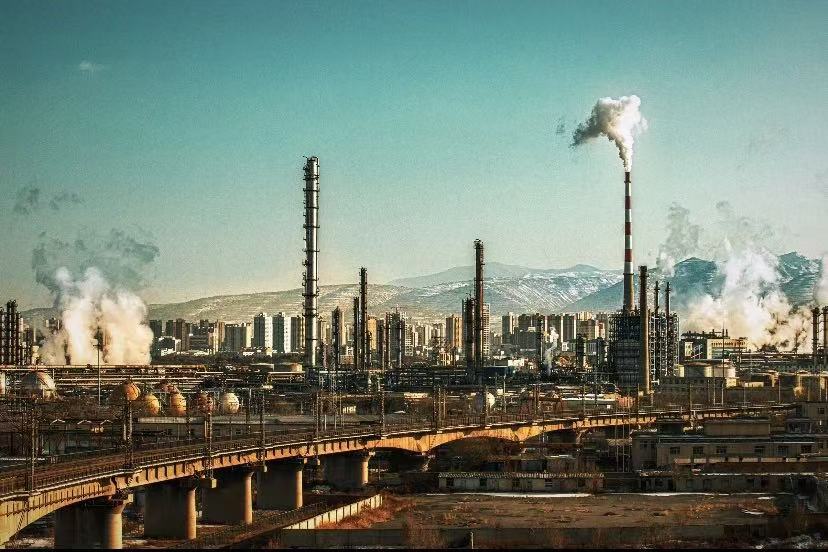

Industrial production

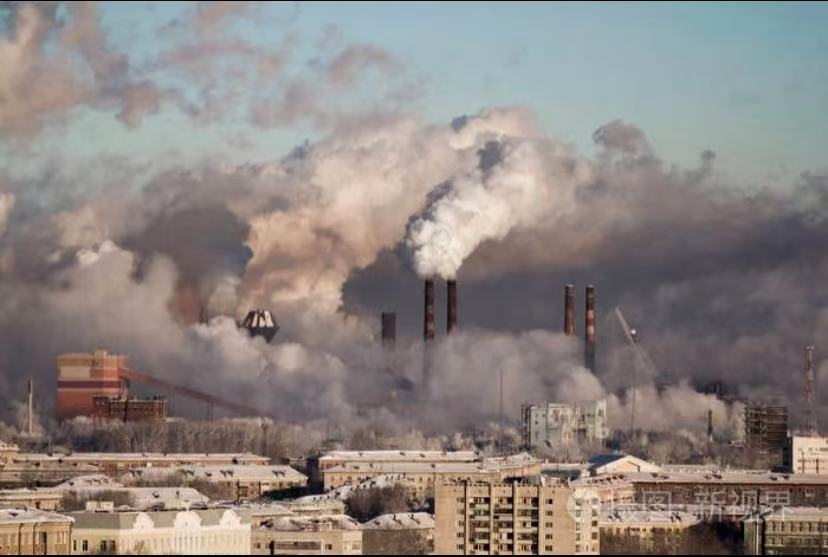

Waste gas emission monitoring: Conduct real-time monitoring of industrial waste gas emissions to ensure that waste gases meet emission standards and reduce pollution to the environment.
Environmental inspection
Air quality monitoring helps people understand air quality and protect the environment and health by detecting harmful gases such as sulfur dioxide.
Safety protection
In coal mines and tunnels, gas sensors detect toxic and harmful gases such as methane and warn against accidents.
A:Yes,we can provide you with OEM services and design housings and logos.
3.DO you offer free samples?
A:Sorry,we don't offer free samples. After ordering in bulk, we will deduct the sample fee from the second order.
Why Choose ZONEWU
xiamen ZoneWu LoRaWAN NH3 sensor is a new type of IoT sensor made with LoRa wireless technology. It contains ammonia gas, temperature and humidity sensors, which can measure the ammonia gas concentration, temperature and humidity in the environment in real time, and is sensitive, accurate and stable.
Details

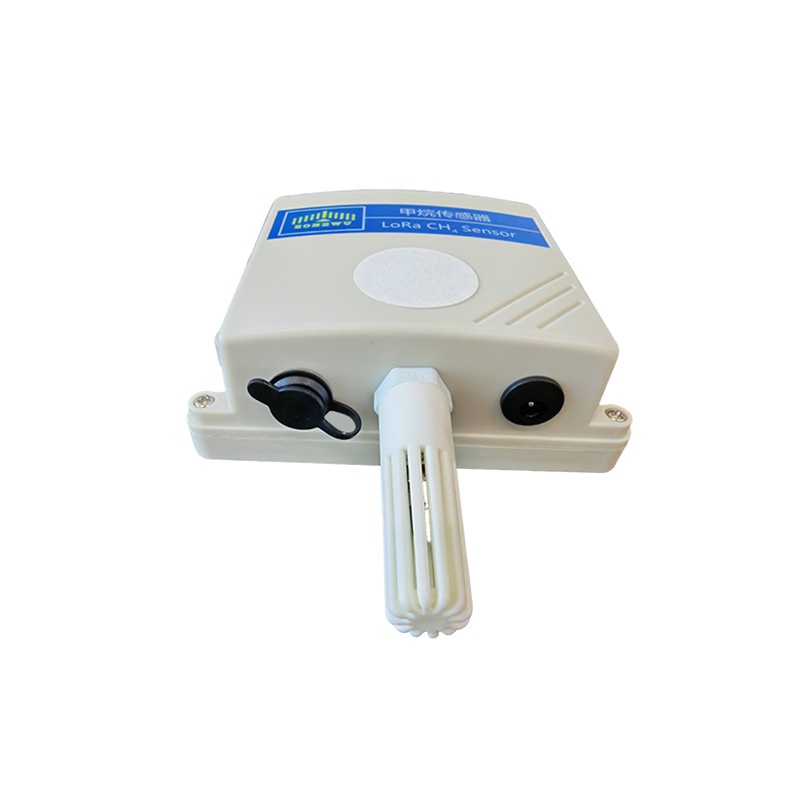

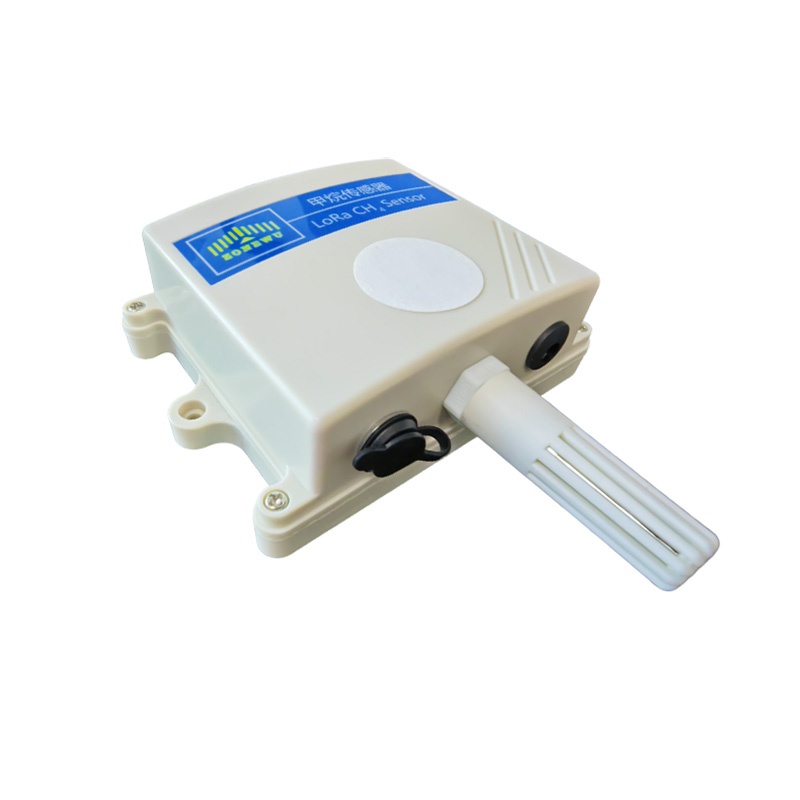

xiamen ZoneWu LoRaWAN Wireless CH4 Sensor is awesome! It can collect, monitor, and transmit, with a high-sensitivity methane sensor built-in, fast response, stable and durable, resistant to water vapor interference, non-toxic, replaceable catalytic combustion sensor, can be used in dust environment, based on LoRa technology communication distance is still long.
