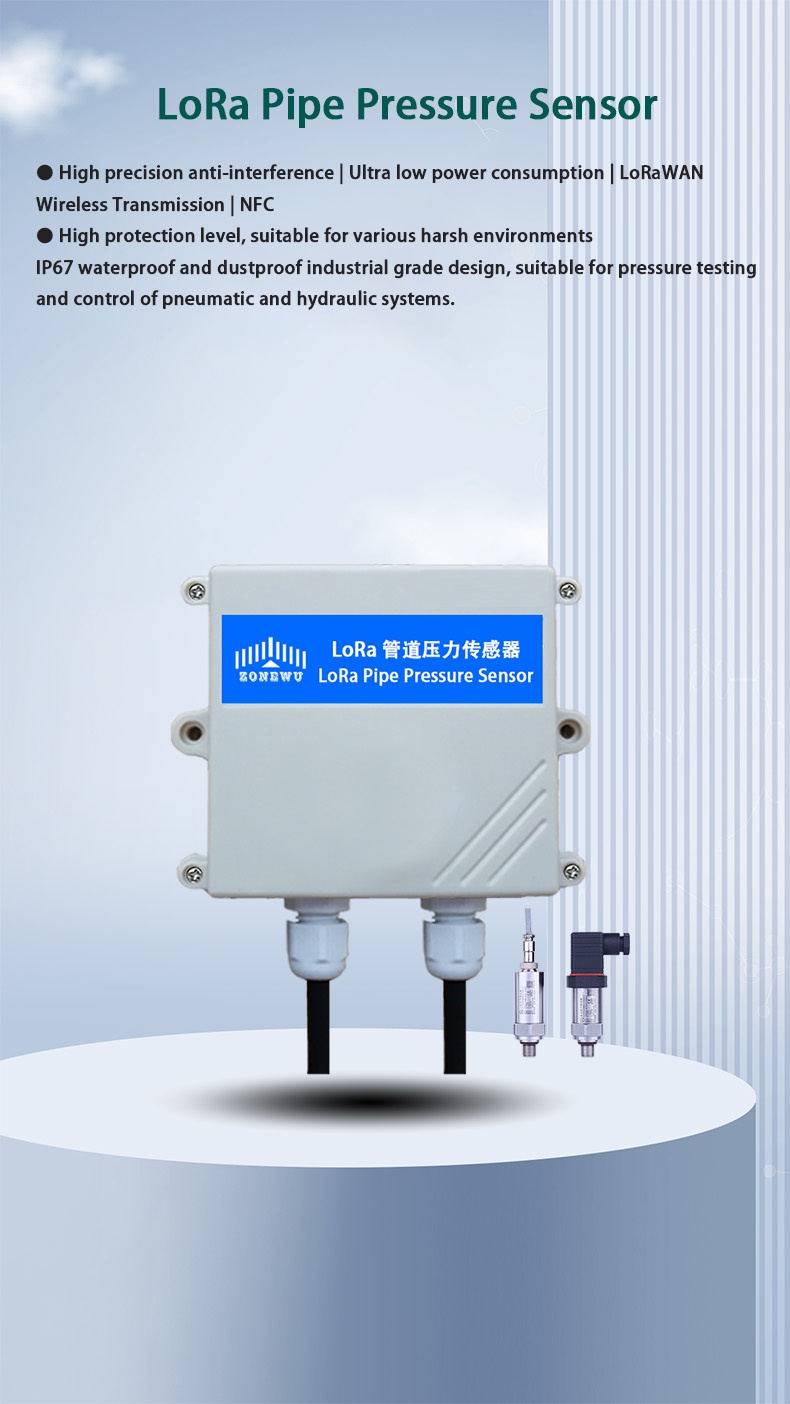

LoRaWAN wireless pressure sensor is a collection of LoRaWAN collector and pressure sensor in one of the new Internet of Things sensor, pressure transmitter high-quality imported pressure sensing core, another configuration of ultra-low power microprocessor and high-precision sensor signal conditioning circuit as one, support standard LoRaWAN communication protocol, to achieve remote wireless communication. The product is mainly used in unattended, such as oil transmission, gas transmission, heating, water and fire pipeline pressure monitoring and automatic control in the industrial field.
Product Model :
LW203-PMPower Supply Mode :
Battery or External DCFrequency :
CN470/IN865/EU868/RU864/US915/AU915/ KR920/AS923-1&2&3&4MAC Version :
LoRaWAN 1.0.3Mode :
OTAA Class A/CWeight :
120gHigh-performance LoRaWAN Wireless Pressure Sensor

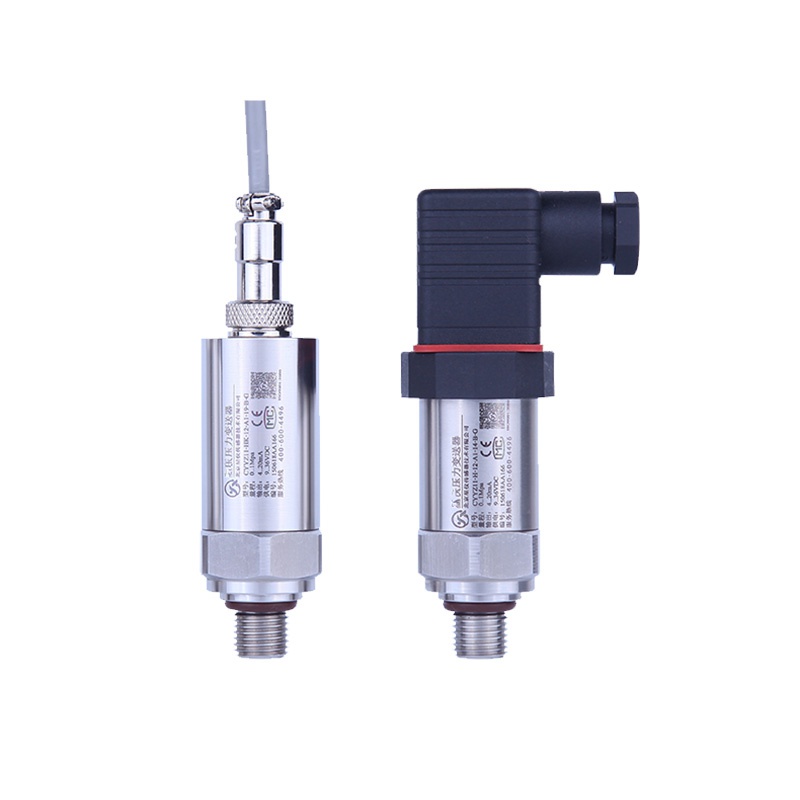

The LoRaWAN wireless pressure sensor is based on LoRaTM spread spectrum modulation technology, and the terminal can communicate over very long distances. Set data acquisition, monitoring, transmission in one wireless pressure sensor. The product pressure transmitter pressure sensitive core adopts high-performance silicon piezoresistive pressure oil core body, the internal application-specific integrated circuit converts the sensor millivolt signal into standard voltage, current or frequency signal, with small size, light weight, all stainless steel seal structure, can work in corrosive environment. The threshold value can be pre-set according to the field environment, and the anomaly can be reported actively, and the remote wireless gateway configuration can be supported, which has good stability and reliability. Widely used in the Internet of Things industry chain, such as process control, aviation, aerospace, automotive, medical equipment, HVAC and other fields.
Product Parameters
|
Power Supply |
ER26500 Li-SOCl2 8500 mAh battery,3.6V |
|
Weight |
200g |
|
Operating Emperature |
-10~40℃ |
|
Measuring Range |
Range: 0-2.5 Mpa(other ranges can be customized) |
|
Accuracy |
±0.5% F.S |
|
Transmitter Line length |
Default 1.5m (other lengths can be customized) |
|
Frequency |
CN470/IN865/EU868/RU864/US915/AU915/ KR920/AS923-1&2&3&4 |
|
Mode |
OTAA Class A |
|
Reporting cycle |
60min(Default ) |
|
Battery Life |
≤3 years （Depending on the reporting cycle） Note: Due to the high power consumption of Pressure sensor, it is not recommended to use short cycle data reports. |
|
Communication Protoco |
LoRaWAN,LoRa TDMA Networking |
|
Equipment information (Reference) |
AppEUI：0000000000000001 DevEUI：aaaa202404150001 AppKey：00001111222233334444555566667777 MAC Version：LoRaWAN 1.0.3 |
Characteristics of Pressure Sensors:
1.High sensitivity:Pressure sensors can detect minute pressure changes and accurately convert them into electrical signals, ensuring precise measurement results.
2.Fast response:They exhibit rapid response times, quickly capturing pressure fluctuations, making them suitable for real-time monitoring applications.
3.Wide measurement range:Pressure sensors can adapt to a broad spectrum of measurement needs, from subtle air pressure variations to high-pressure environments, delivering accurate data.
4.High precision:Sensors with varying levels of precision meet the requirements of diverse application scenarios, ensuring reliable measurement outcomes.
5.Excellent stability:Pressure sensors maintain high measurement accuracy over extended periods of use, demonstrating strong long-term stability.
6.Strong anti-interference capability:They operate reliably even in harsh environments, exhibiting robust resistance to interference.

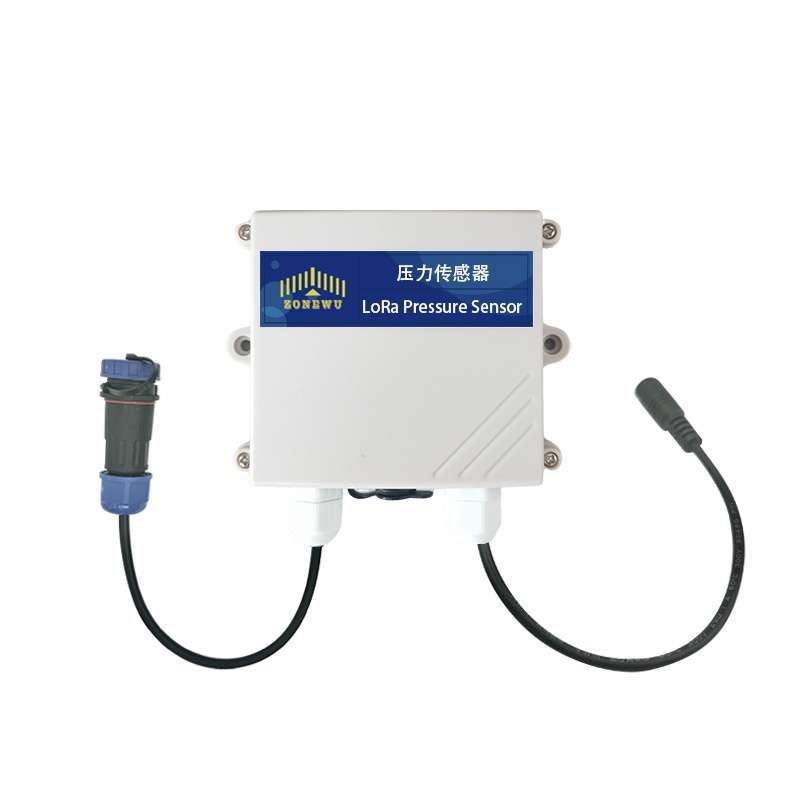

Detailed Images
