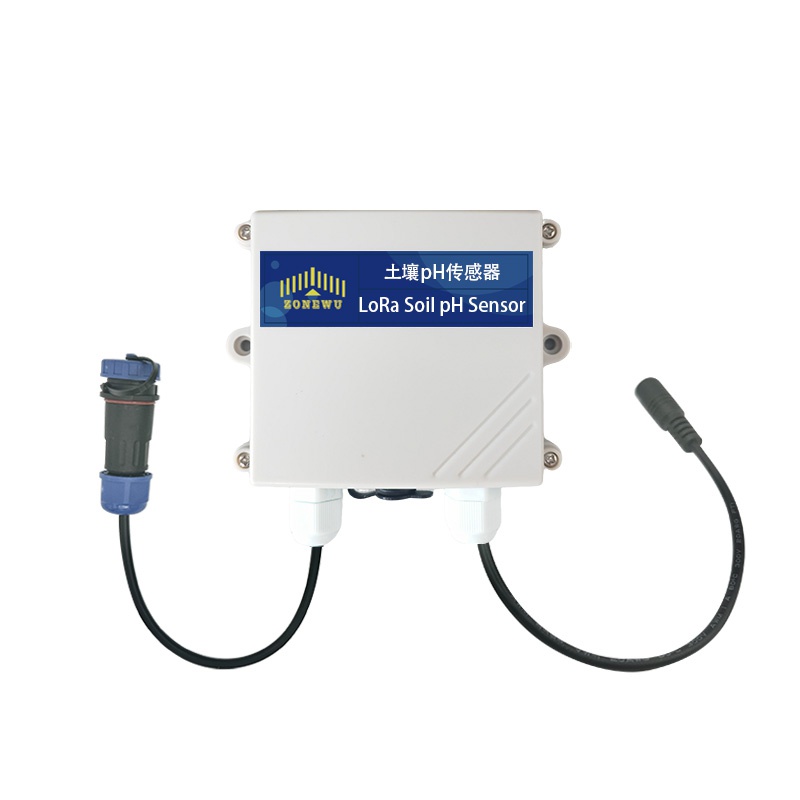

Hot-sale Digital LoRaWAN Wireless Soil PH Value Sensor

Hot-sale Digital LoRaWAN Wireless Soil PH Value Sensor

LoRa soil pH sensor is a wireless IoT sensor developed based on LoRa technology. It uses electrochemical principles for measurement, with high accuracy, fast response, stable output, and is suitable for various soil types. Support standard LoRaWAN protocol to achieve remote wireless communication.

  • Product Model :

    LW502-PH
  • Power Supply Mode :

    Battery or External DC
  • Frequency :

    CN470/IN865/EU868/RU864/US915/AU915/ KR920/AS923-1&2&3&4
  • MAC Version :

    LoRaWAN 1.0.3
  • Mode :

    OTAA Class A/C
  • Weight :

    120g

         Hot-sale Digital LoRaWAN Wireless Soil PH Value Sensor



LoRa soil pH sensor is a wireless IoT sensor that integrates collection, monitoring, and transmission. The transmitter has high accuracy, fast response, stable output, and is suitable for various soil types. Can be buried in soil for a long time, resistant to long-term electrolysis, corrosion-resistant, vacuum sealed, completely waterproof. Using aviation connectors and LoRaWAN collectors, wireless remote low-power communication is achieved based on LoRa technology. It can be widely used for detecting soil acidity and alkalinity, measuring acidity and alkalinity in fields such as precision agriculture, forestry, geological exploration, plant cultivation, water conservancy, and environmental protection.

Technical Parameters

Power Supply

ER26500 Li-SOCl2 8500 mAh battery,3.6V

Weight

200g

Operating Emperature

-20℃~+60℃

Soil pH Parameters

Range: 3-9 pH

Resolution: 0.1

Long Term Stability

≤ 5%/year

Probe Material

Anti corrosion special electrode

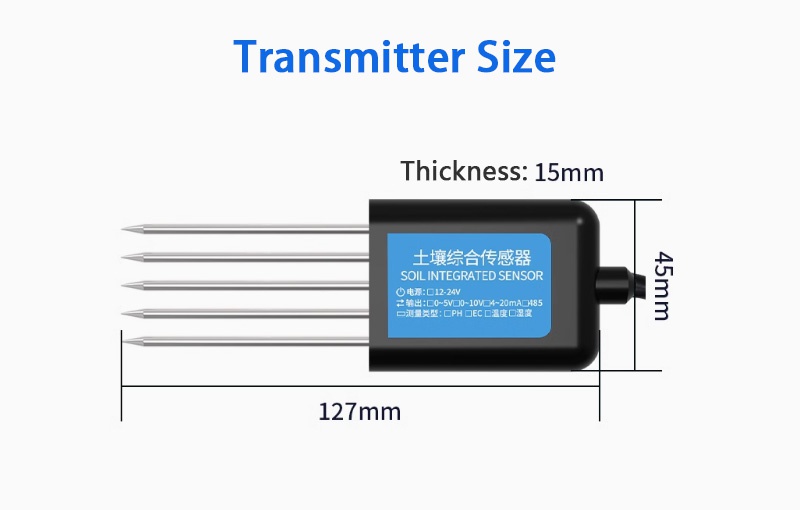

Transmitter

Line length

Default 2m (other lengths can be customized)

Frequency

CN470/IN865/EU868/RU864/US915/AU915/

KR920/AS923-1&2&3&4

Mode

OTAA  Class A

Reporting cycle

60min(Default )

Battery Life

≤3 years (Depending on the reporting cycle)

Note: Due to the high power consumption of Soil PH Sensor,

it is not recommended touse short cycle data reports.

Communication Protocol

LoRaWAN,LoRa TDMA Networking

Equipment information

(Reference)

AppEUI:0000000000000001

DevEUI:aaaa202404150001

AppKey:00001111222233334444555566667777

MAC Version:LoRaWAN 1.0.3

Characteristics of soil pH sensor:

1. Wide measurement range: capable of measuring soil pH values within the range of 0-14pH, suitable for various soil types.

2. High precision: The sensor accuracy reaches ± 0.1pH, ensuring the reliability of the measurement results.

3. High resolution: The resolution reaches 0.01pH, providing more precise measurement data.

4. Flexible power supply mode: Supports DC 12V-24V power supply mode to adapt to various voltage environments.

5. High integration: reduces device complexity and is easy to install and use.

6. Low power consumption: beneficial for energy conservation.

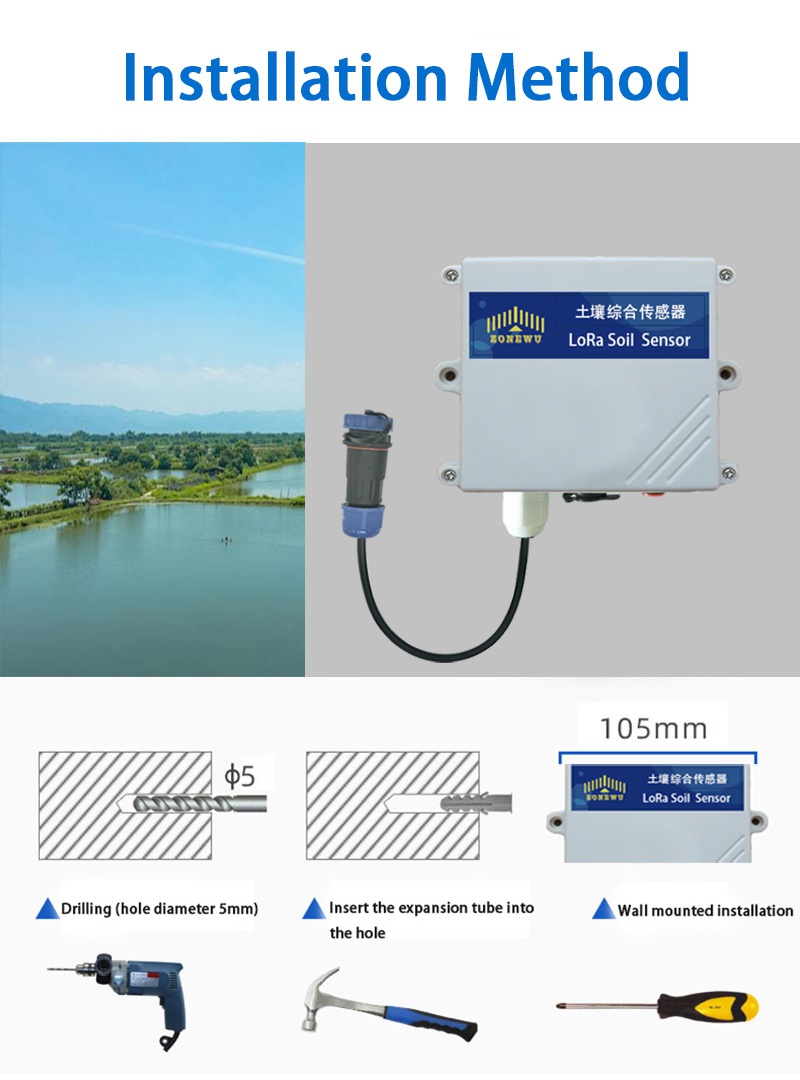

Detailed Images





Why Choose ZONEWU

  • Professional IoT Sensor Manufacturer
    Specializes in R&D, production, and sales of IoT sensors with strong technical expertise
  • High Quality and Reliability
    Products certified with international standards (e.g., CE, RoHS), ensuring high quality and long lifespan.
  • Wide Range of Applications
    Products serve diverse industries such as water quality monitoring, environmental monitoring, and industrial automation, offering strong market adaptability.
  • Advanced Technology
    Utilizes cutting-edge communication technologies like LoRaWAN and NB-IoT for remote, low-power data transmission.
  • Customized Solutions
    Provides tailored products and OEM/ODM services to meet diverse application needs.



leave a message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Related Products

LoRaWAN Wireless Soil PH Value Sensor
Hot-sale Digital LoRaWAN Wireless Soil PH Value Sensor

LoRa soil pH sensor is a wireless IoT sensor developed based on LoRa technology. It uses electrochemical principles for measurement, with high accuracy, fast response, stable output, and is suitable for various soil types. Support standard LoRaWAN protocol to achieve remote wireless communication.

Details

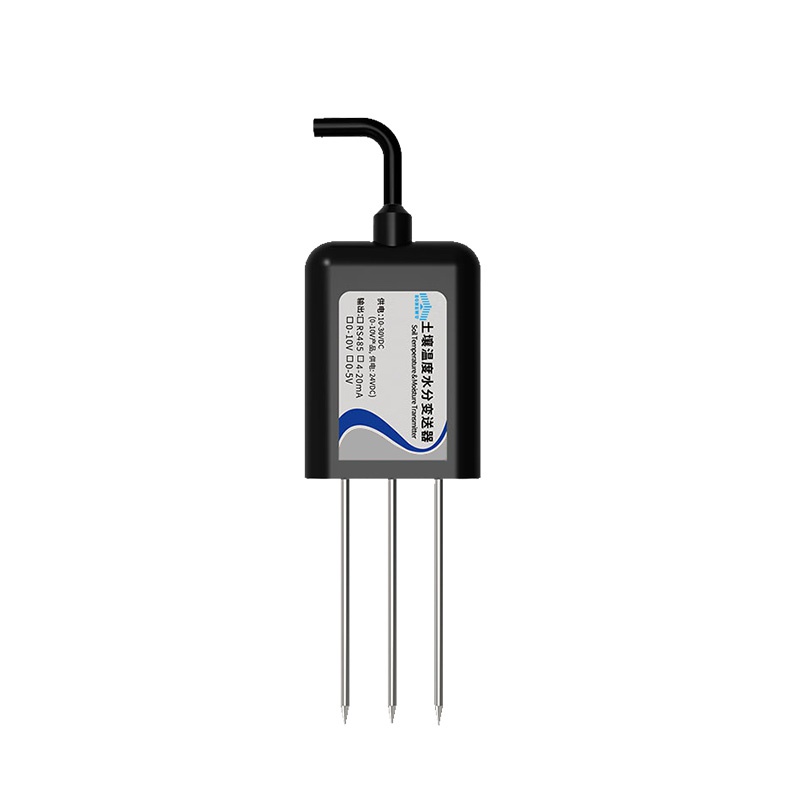

LoRaWAN Soil Temperature and Moisture Sensor
LoRa Soil Temperature and Moisture Sensor

LoRa Soil Temperature and Humidity Sensor is a wireless IoT sensor that integrates data collection, monitoring, and transmission. It can be inserted into the soil to directly measure humidity and temperature, with accurate measurement and fast response speed. Support standard LoRaWAN protocol to achieve remote wireless communication. Facilitate users to have real-time access to soil data.

Details
Wireless LoRaWAN Soil Electrical Conductivity Sensor
Wireless LoRa Soil Electrical Conductivity Sensor

Wireless LoRa Soil Electrical Conductivity Sensor is a three in one wireless IoT sensor with stable performance and high sensitivity. By measuring the dielectric constant of soil, the true moisture content of various soils can be directly and stably reflected. The volumetric percentage of soil moisture that can be measured is a soil moisture measurement method that meets current international standards. Support standard LoRaWAN protocol to achieve wireless remote communication.

Details

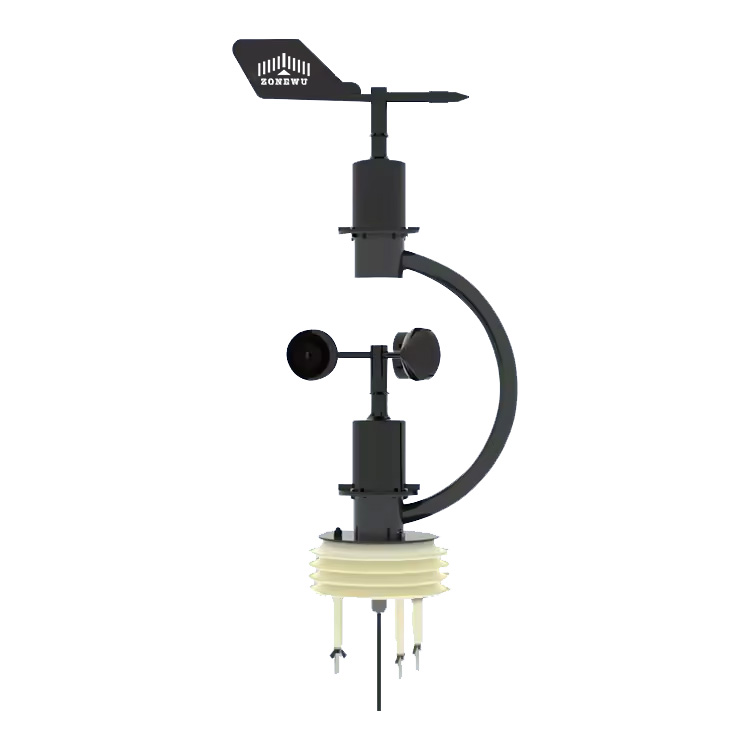

C-type Integrated Multi-element Meteorological Transmitter
C-type Integrated Multi-element Meteorological Transmitter

The C - type integrated multi - element meteorological transmitter is a highly advanced device. It is designed to accurately measure multiple meteorological parameters simultaneously. With its integrated structure, it occupies less space and is easy to install. This transmitter can precisely monitor temperature, humidity, wind speed, and other elements. It plays a crucial role in weather forecasting, environmental monitoring, and various meteorological - related fields, providing reliable data for accurate analysis.

Details

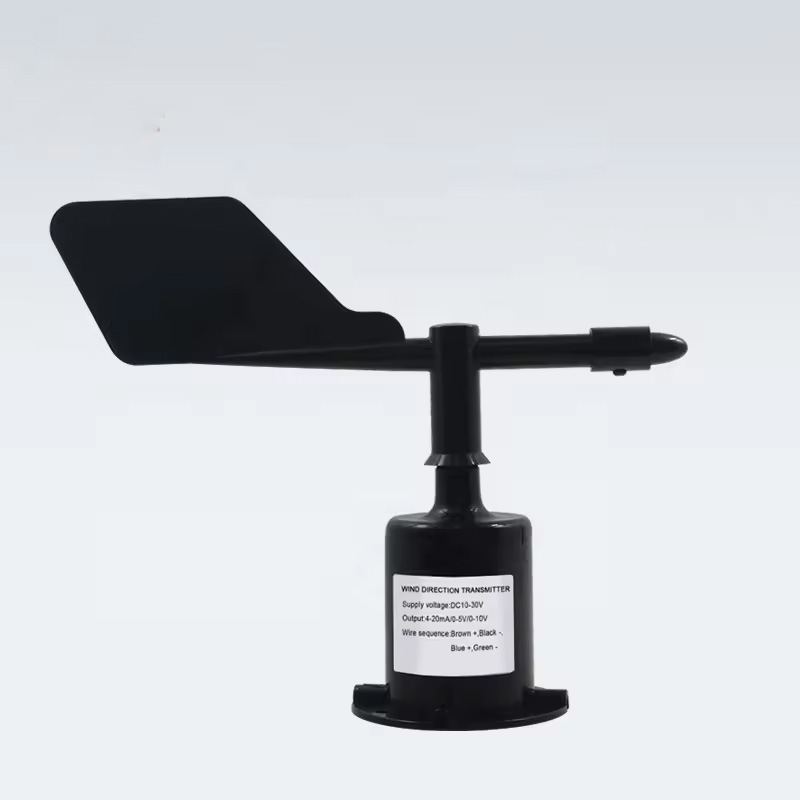

Carbon Based Wind Direction Sensor
Carbon Based Wind Direction Sensor

A carbon based wind direction sensor is a device designed to accurately detect wind direction. It typically operates based on the physical properties of carbon materials, which can respond to the force and direction of the wind.These sensors offer several advantages. They are highly sensitive, enabling precise measurements even in gentle breezes. Their compact design makes them easy to install in various settings, from weather stations to industrial facilities.Moreover, they are reliable and durable, able to withstand different environmental conditions. As a result, they are widely used in meteorology, aviation, and wind energy industries to ensure safety and optimal performance.

Details

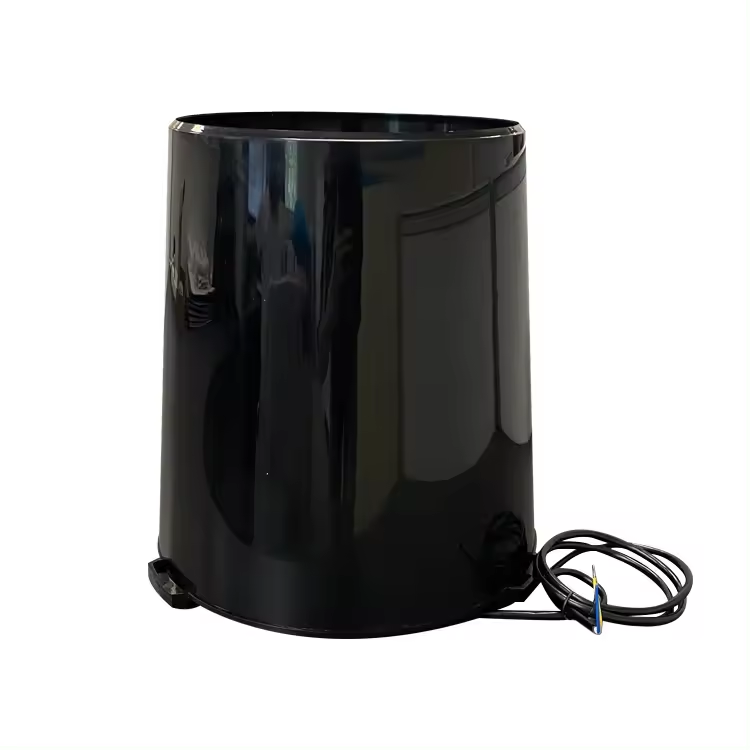

Tipping bucket stainless steel rain gauge
Tipping bucket stainless steel rain gauge

The tipping bucket stainless - steel rain gauge is a reliable and precise meteorological instrument designed for accurate rainfall measurement. Its stainless - steel construction ensures high durability, making it suitable for various weather conditions. The tipping - bucket mechanism is the core of its operation. Each time the bucket fills with a pre - set amount of rainwater, it tips, generating an electrical pulse. These pulses are then counted to calculate the rainfall amount. With its easy - to - use design and high - precision measurement, it is widely used in weather stations, agricultural monitoring, and environmental research, providing essential data for weather forecasting and water resource management.

Details

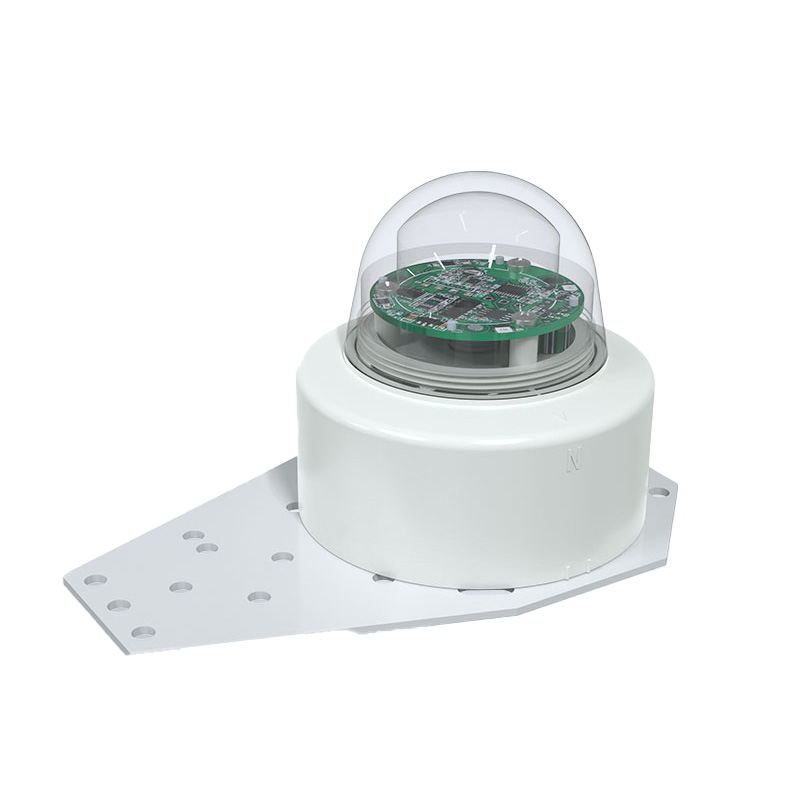

Infrared Light Rainfall Sensor
Infrared Light Rainfall Sensor

Industrial grade optical rain gauges accurately and reliably measure rainfall and intensity. It is a maintenance free optical rain sensor that can be used for various rainfall monitoring and control applications. Unlike traditional mechanical rain sensors, optical rain sensors are smaller, more sensitive, more reliable, and more intelligent.

Details

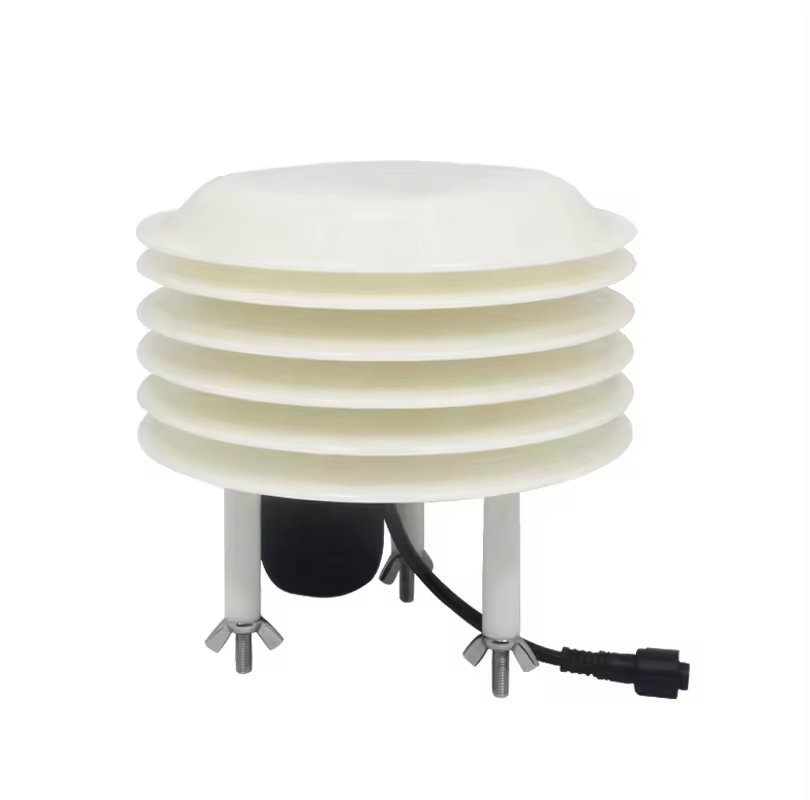

Hot-sale Louver Box Noise Transmitter
