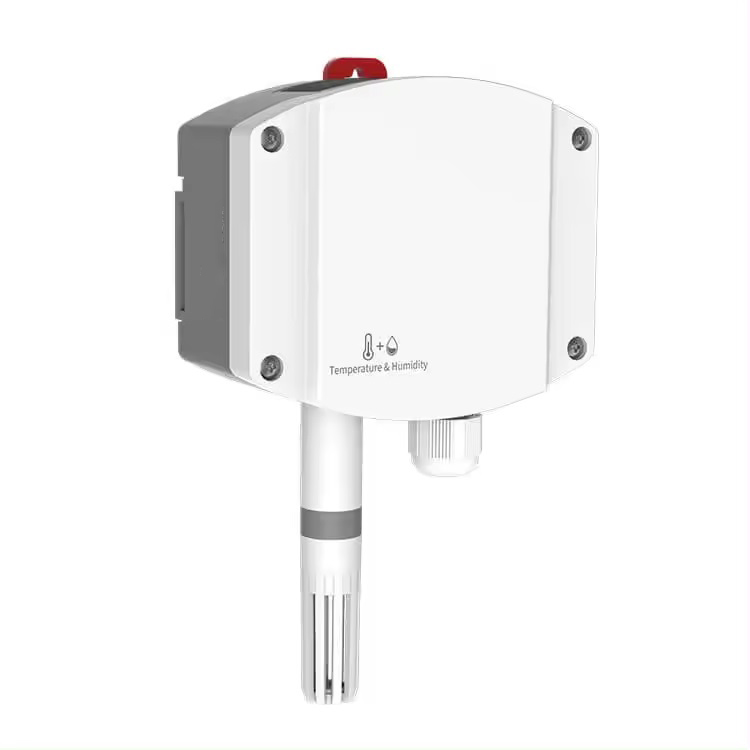

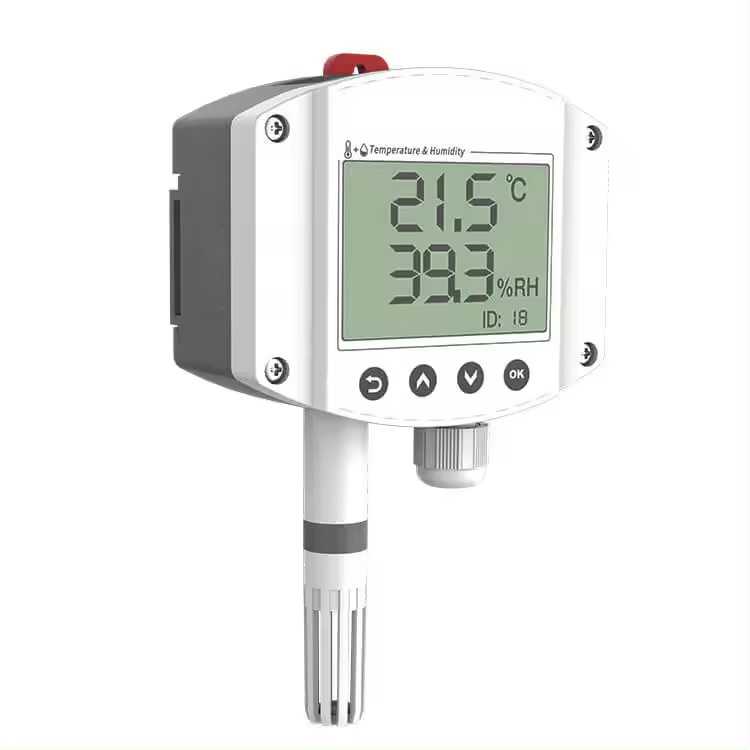

Industrial LCD display temperature and humidity sensor

Industrial LCD display temperature and humidity sensor

Industrial liquid crystal display temperature and humidity sensor is a standard ModBusRTU protocol of the Internet of Things temperature and humidity sensor, built-in high precision temperature and humidity sensor, with LCD LCD display, real-time view of the field temperature and humidity data. It has the characteristics of good long-term stability and low drift.

  • Product Model :

    ZW-WS-LCD
  • Power Supply Mode :

    10-30VDC
  • Weight :

    0.8kg
  • Interface :

    RS485
  • Protocol :

    ModBusRTU

Industrial LCD display temperature and humidity sensor

Industrial liquid crystal display temperature and humidity sensor adopts industrial wall-mounted high protection housing, circuit adopts industrial grade microprocessor chip imported from the United States and imported high-precision temperature and humidity sensor, to ensure that the product has excellent reliability, high precision and interchangeability. The output signal type is RS485, and the maximum communication distance is 2000 meters. It uses the standard ModBusRTU protocol and supports secondary development. The case is equipped with an LCD screen, which is beautiful and generous.

Technical Parameters

Power supply DC 10-30V
Max. power consumption 0.4W
Measuring range -40℃~+80℃ (-40℃~+120℃ for optional), 0%RH-100%RH
Default accuracy 0.5℃ (25℃), ±3%RH(60%RH,25℃)
High accuracy ±0.4℃ (25℃), ±2%RH(60%RH,25℃)
Resolution 0.1℃, 0.1%RH
Refresh time 1s
Hole size 70mm
Output signal RS485/4-20mA/0-5V/0-10V
Long-term stability Temperature ≤0.1℃/y
Humidity ≤1%RH/y
Response time Temperature ≤25s (1m/s wind speed)
Humidity ≤8s (1m/s wind speed)

Features of the industrial LCD temperature and humidity sensor:

1.High-precision measurement:Equipped with a high-accuracy sensor to ensure reliable measurements.

2.Long-term stability: Designed for consistent performance with minimal drift over time.

3.Multiple signal output options:Supports RS485, analog signals (4–20mA/0–10V/0–5V), and other data transmission methods to meet diverse application needs.

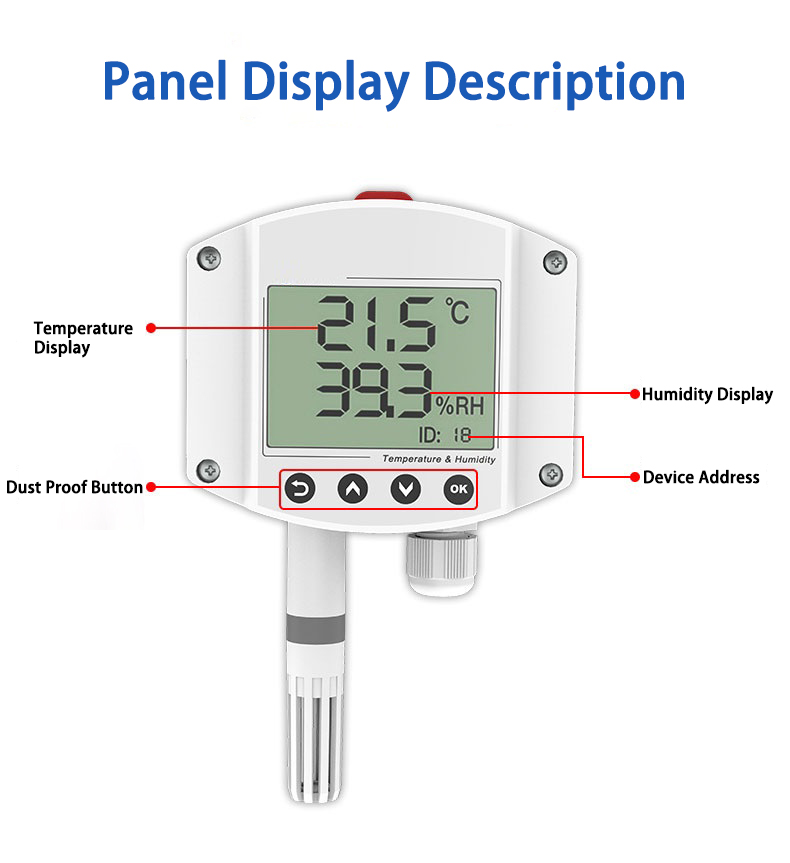

4.Built-in LCD display:The integrated LCD screen allows for real-time monitoring of temperature and humidity values, ensuring user-friendly operation.

5.High protection rating:The housing boasts a high protection level (e.g., IP65), offering resistance to rain and snow while maintaining breathability, making it suitable for harsh environments.

Detailed Images

Wall mounted temperature and humidity sensor features:
  1. Using high-precision temperature and humidity measurement unit, long-term stability is good, and drift is small
  2. 10~30V wide voltage range power supply

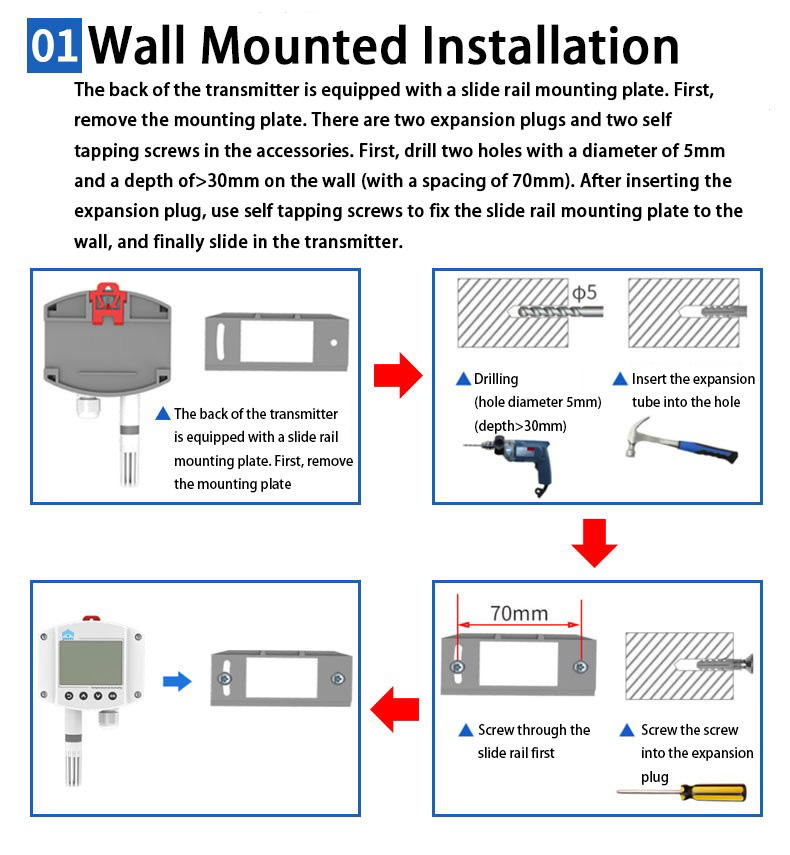

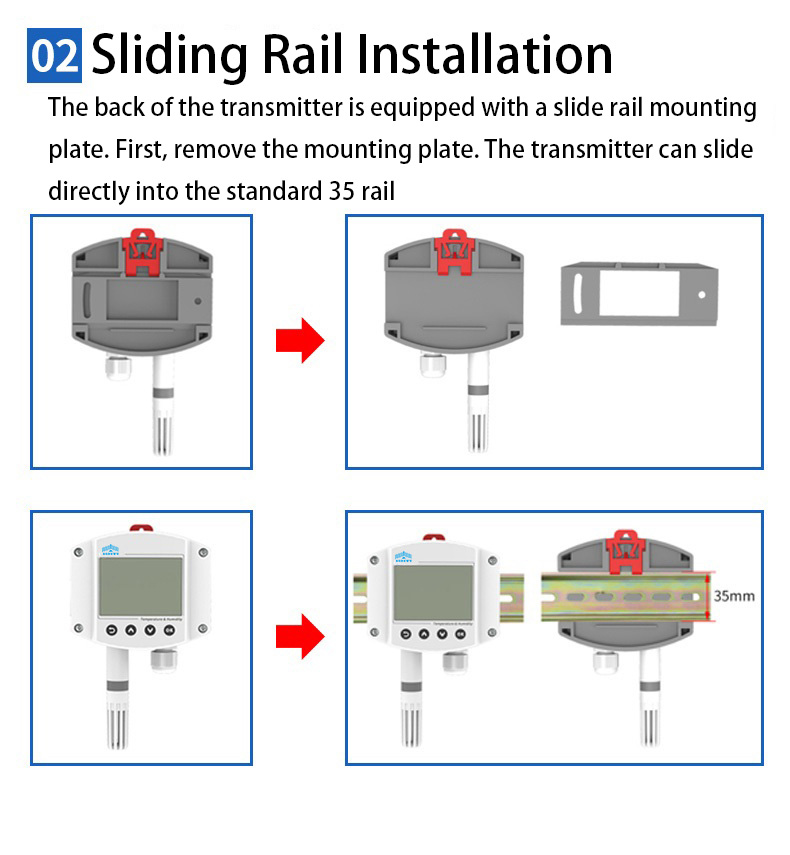

  3.  Easy to install, can be wall-mounted or rail-mounted
  4.  High anti-dust protection level (IP65) 5. Optional LCD liquid crystal display, beautiful and generous

Why Choose ZONEWU

  • Professional IoT Sensor Manufacturer
    Specializes in R&D, production, and sales of IoT sensors with strong technical expertise
  • High Quality and Reliability
    Products certified with international standards (e.g., CE, RoHS), ensuring high quality and long lifespan.
  • Wide Range of Applications
    Products serve diverse industries such as water quality monitoring, environmental monitoring, and industrial automation, offering strong market adaptability.
  • Advanced Technology
    Utilizes cutting-edge communication technologies like LoRaWAN and NB-IoT for remote, low-power data transmission.
  • Customized Solutions
    Provides tailored products and OEM/ODM services to meet diverse application needs.
