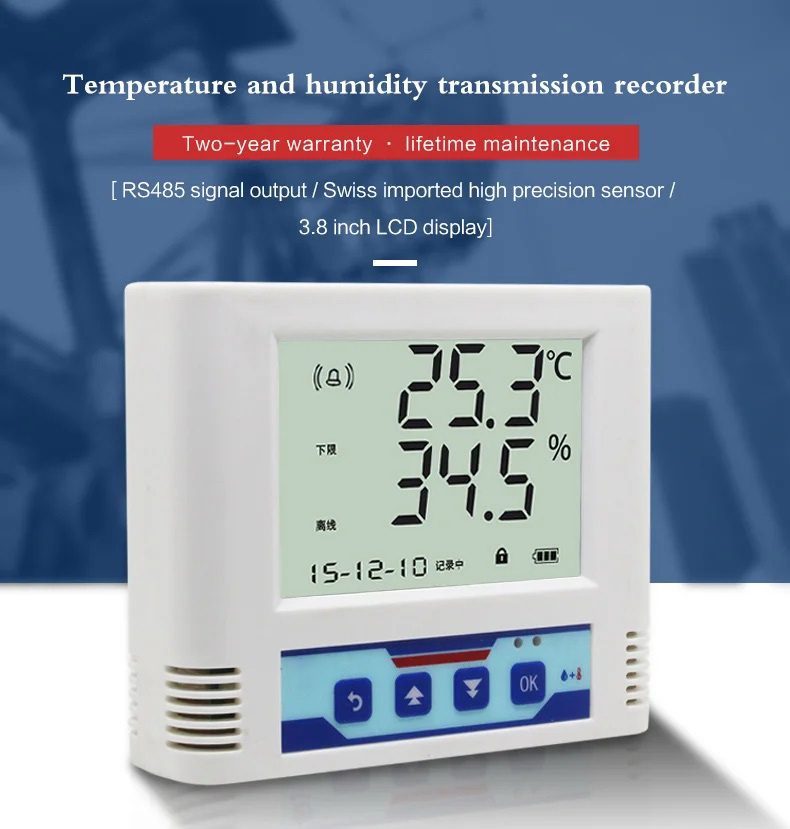

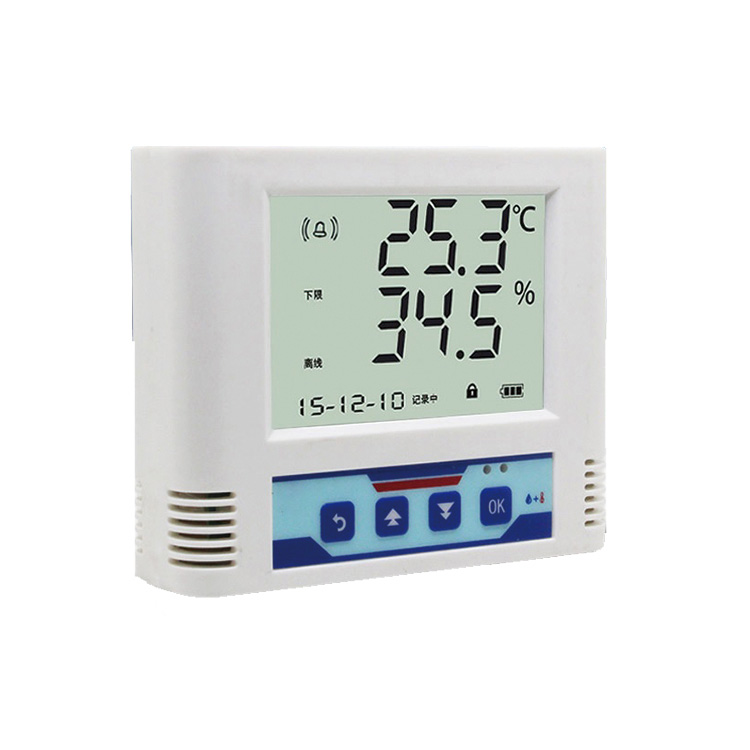

This is a powerful temperature and humidity measurement device equipped with an intuitive LCD display screen, which presents real-time and accurate environmental temperature and humidity values. Adopting RS485 communication interface, it has good compatibility and stability, and can easily connect to various monitoring systems to achieve long-distance data transmission. Widely used in industrial production, warehousing, agricultural greenhouses and other scenarios, providing reliable basis for environmental regulation.
Product Model :
ZW-WSPower Supply Mode :
10-30VDCWeight :
0.6kgInterface :
RS485Protocol :

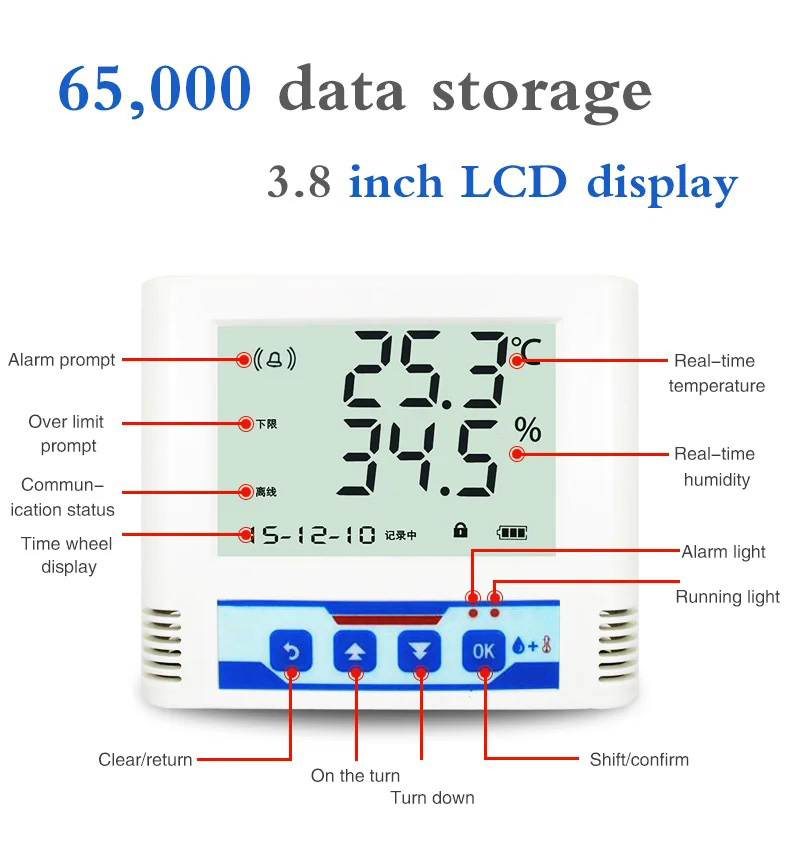

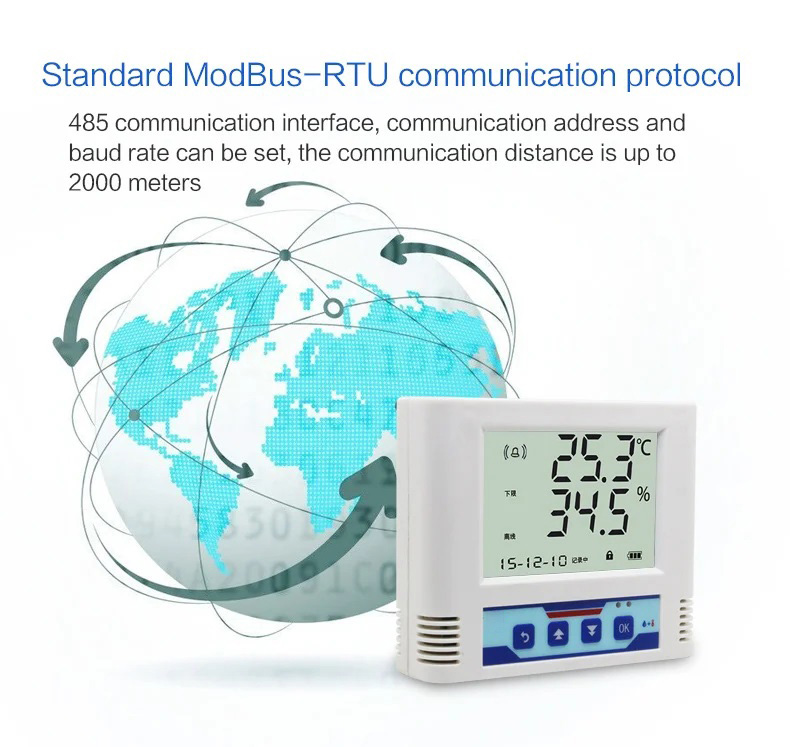

ModBusRTUThe transmitter is equipped with a LCD display, which displays temperature and humidity in real time. The back is connected without screws and can be installed on a standard 86mm junction box. The equipment adopts the standard ModBus RTU communication protocol, with RS485 signal output, and a maximum communication distance of up to 2000 meters (measured). The probe can be either built-in or external, and is widely used in communication rooms, warehouse buildings, and places that require temperature and humidity monitoring such as self-control. Safe and reliable, aesthetically pleasing, and easy to install.
|
DC Power Supply (default) |
10-30V DC |
|
|
Maximum Power Consumption |
0.4W |
|
|
Precision (default) |
Humidity |
±3%RH（60%RH，25℃） |
|
Temperature |
±0.5℃（25℃） |
|
|
Working Temperature and humidity of Transmitter Circuit |
-20℃~+60℃，0%RH~95%RH（Non condensing） |
|
|
Temperature Measurement Range |
-40~+80℃ |
|
|
Humidity Measurement Range |
0~100%RH |
|
|
Communication Protocol |
ModBus-RTU |
|
|
Output Signal |
RS485 |
|
|
Temperature Display Resolution |
0.1℃ |
|
|
Humidity Display Resolution |
0.1%RH |
|
|
Temperature and Humidity Refresh Time |
1s |
|
|
Long Term Stability |
Temperature |
≤0.1℃/y |
|
Humidity |
≤1%RH/y |
|
|
Response Time |
Temperature |
≤25s（1m/swind speed1） |
|
Humidity |
≤8s（1m/swind speed1） |
|
|
Dimension |
60mm |
|
|
Caution Function |

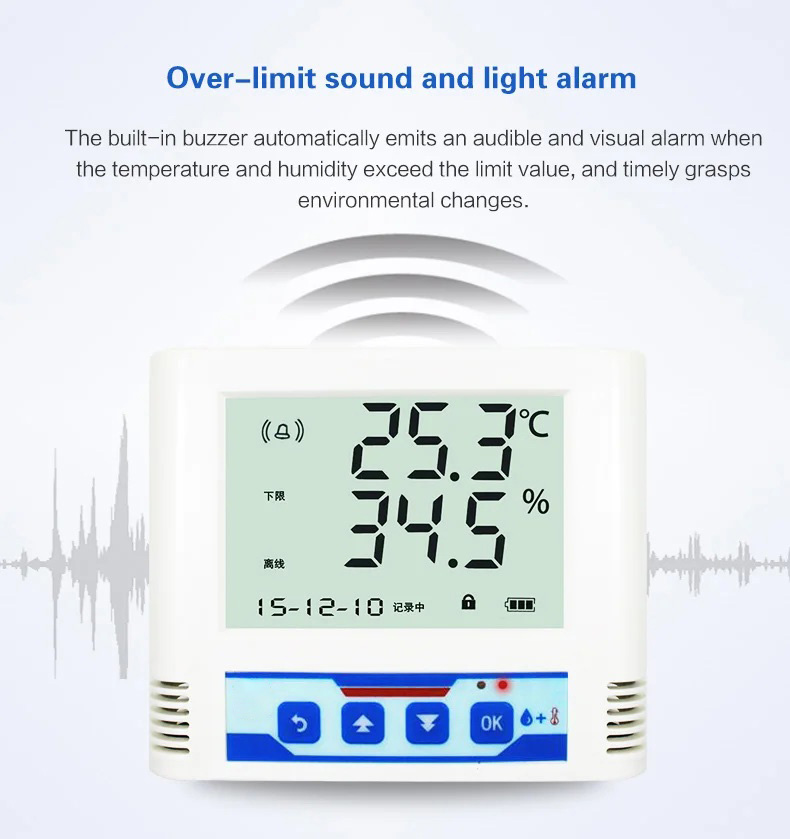

In the state of temperature and humidity exceeding the limit, it supports buzzer alarm, alarm light flashing, and also supports button quick activation and deactivation of buzzer alarm function. |
|
|
Parameter settings |
Modify directly through software settings or buttons |
|
1. Wind speed refers to the wind speed at the sensitive material inside the sensor. When the test environment wind speed is 10-2m/ms, the wind direction is perpendicular to the sensor collection port, and the wind speed at the sensitive material inside the sensor is about 1m/s.
