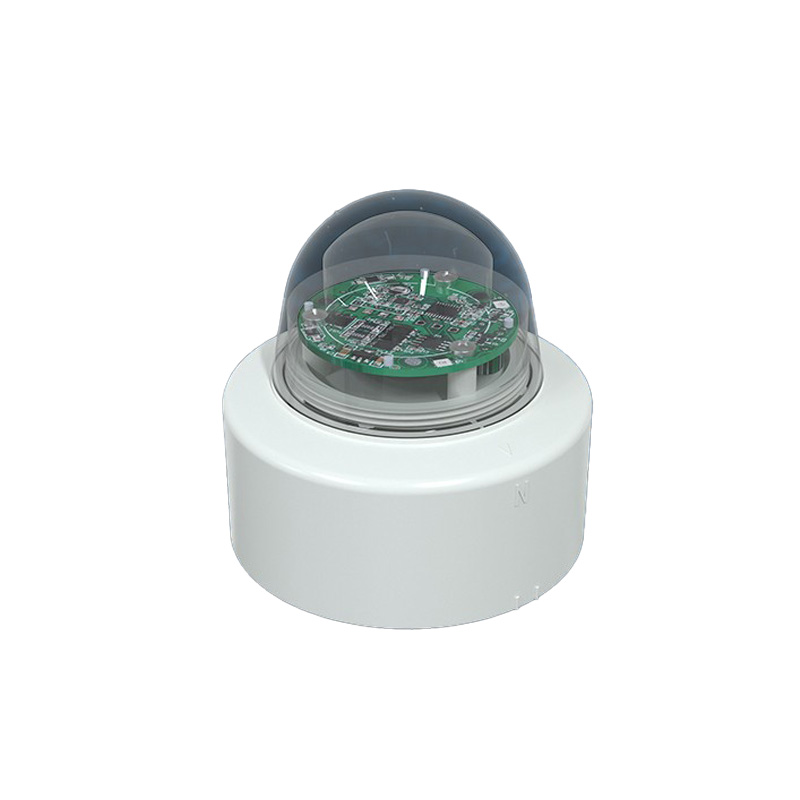

Infrared Light Rainfall Sensor

Infrared Light Rainfall Sensor

Industrial grade optical rain gauges accurately and reliably measure rainfall and intensity. It is a maintenance free optical rain sensor that can be used for various rainfall monitoring and control applications. Unlike traditional mechanical rain sensors, optical rain sensors are smaller, more sensitive, more reliable, and more intelligent.



  • Product Model :

    ZW-GYL
  • Power Supply Mode :

    10~30V
  • Weight :

    0.6kg
  • Interface :

    RS485
  • Protocol :

    ModBusRTU

Optical rainfall sensor is a product for measuring rainfall. It uses optical induction principle to measure rainfall internally and has multiple built-in optical probes for reliable rainfall detection. Unlike traditional mechanical rainfall sensors, optical rainfall sensors are smaller in size, more sensitive, reliable, intelligent, and easy to maintain. It can be widely applied in industries and fields such as smart irrigation, ship navigation, mobile weather stations, automatic doors and windows, geological disasters, etc.

Technical Parameter

Sense of rain diameter 6CM
Power supply 10~30V DC
Power consumption ≤0.24W (12V DC, current ≤ 20mA)
Resolution Standard 0.1mm
Accuracy ±5%
Max. instantaneous rainfall 24mm/min
Output signal Pulse/RS485
Operating temperature -40~60℃
Operating humidity 0~99%RH(no condensation)
Working pressure range Standard atmospheric pressure ±10%

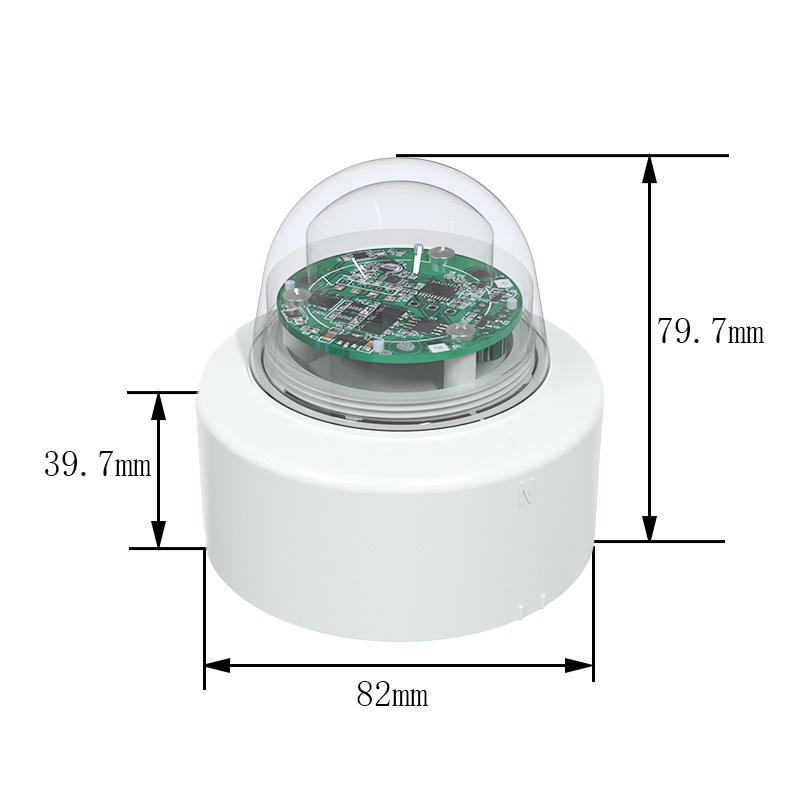

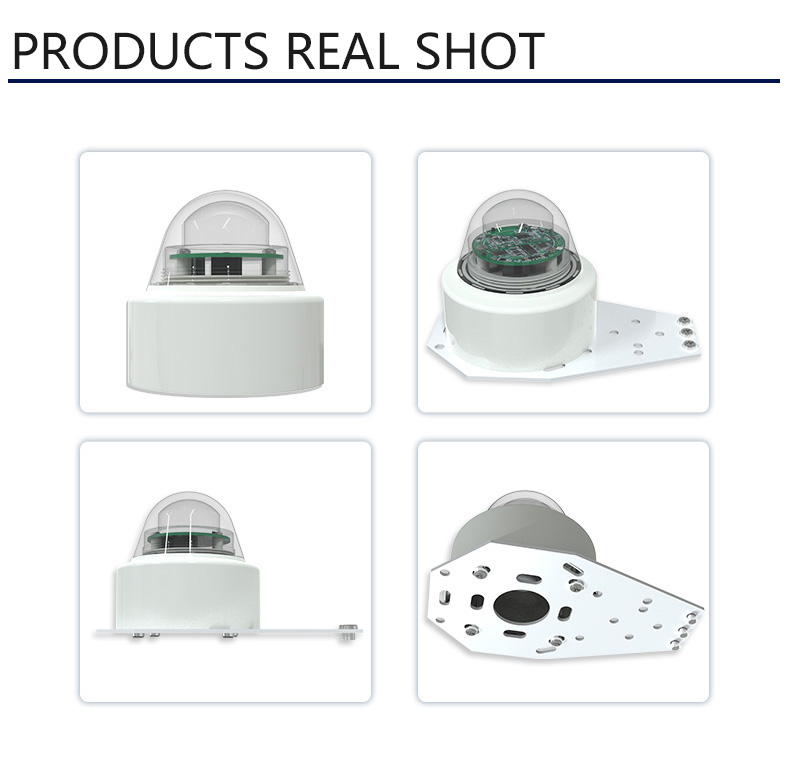

Detailed Images

Small Pulse RS485 Output Rainfall Measurement Sensor Optical Rain Gauge features:
  1. Small size, light weight, simple installation
  2. Low power consumption design, save energy
  3. High reliability, can work normally in high temperature and high humidity environment
  4. Easy to maintain design, not easy to be blocked by fallen leaves
  5. Optical measurement, accurate measurement
  6. Pulse and RS485 two output modes for optional
