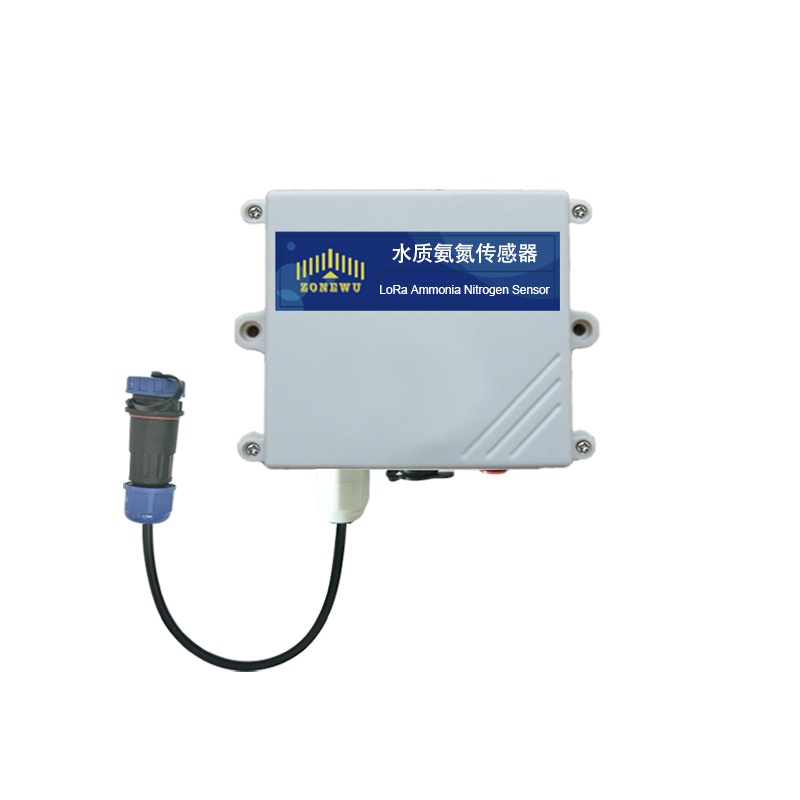

The LoRaWAN water quality ammonia nitrogen monitoring is a cutting-edge device. It uses LoRaWAN wireless technology for reliable, long-distance data transfer. Designed to detect ammonia nitrogen levels in water or air precisely, it offers real-time measurements. With its low power consumption and robust build, it's ideal for environmental monitoring, agricultural applications, and industrial settings, safeguarding the quality of our surroundings.
Product Model :
LW107-NHNPower Supply Mode :
Battery or External DCFrequency :
CN470/IN865/EU868/RU864/US915/AU915/ KR920/AS923-1&2&3&4MAC Version :
LoRaWAN 1.0.3Mode :
OTAA Class A/CWeight :
150gThe LoRaWAN water quality ammonia nitrogen monitoring is a device for measuring the concentration of ammonia nitrogen in water, which exists in the form of free ammonia (NH3) and ammonium ions (NH4+). It can automatically perform temperature and pH compensation, suitable for high-precision measurement in various environments. It can be directly installed, which is more economical, environmentally friendly, convenient and fast compared to traditional ammonia nitrogen analyzers. Supports LoRa TDMA networking and standard LoRaWAN protocol.
Technical Parameters
Power Supply |
DC12/24V |
Weight |
150g |
Measuring Range |
0-10mg/L,resolution: 0.01mg/L 0-100mg/L,resolution:0.01mg/L 0-1000mg/L,resolution: 0.1mg/L |
PH Measurement Range |
0-14PH |
Temperature Measurement Range |
-20-80℃ |
Measurement Error |
Ammonia nitrogen measurement error :± 3% FS PH measurement error :± 0.15PH Temperature measurement error : ± 0.3 ℃ |
Pressure Resistance |
0.2Mpa |
Electrode Usage Cycle |
PH electrode for 6-12 months Ammonia nitrogen electrode for 3-6 months |
Transmitter Line length |
Default 5m (other lengths can be customized) |
Frequency |
CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4 |
Mode |
OTAA Class A/C |
Reporting cycle |
5min(Default ) |
Communication Protocol |
LoRaWAN,LoRa TDMA Networking |
Equipment information (Reference) |
AppEUI:0000000000000001 DevEUI:aaaa202404150001 AppKey:00001111222233334444555566667777 MAC Version: LoRaWAN 1.0.3 |

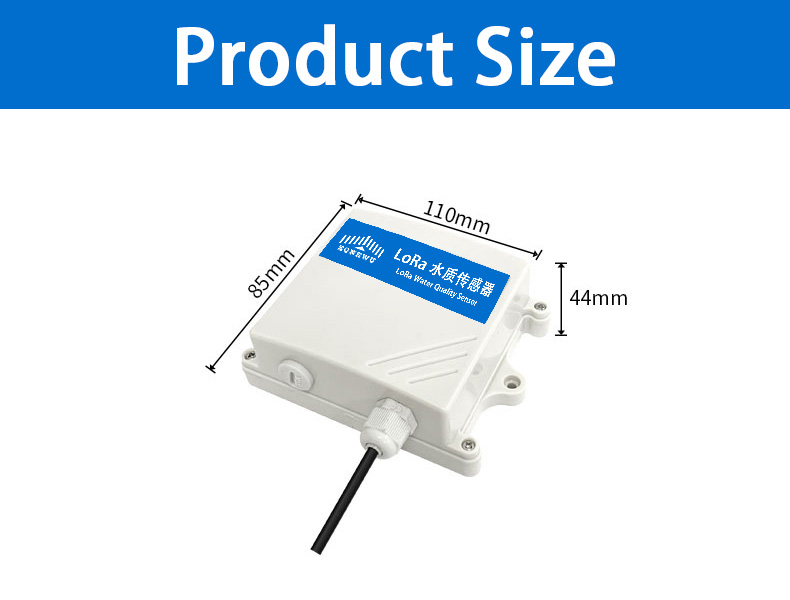

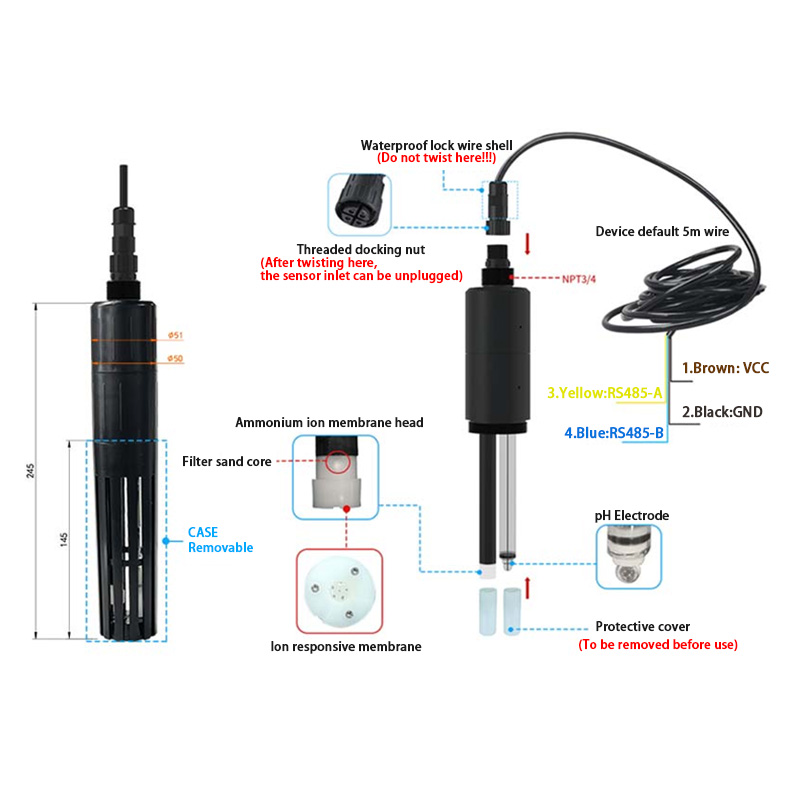

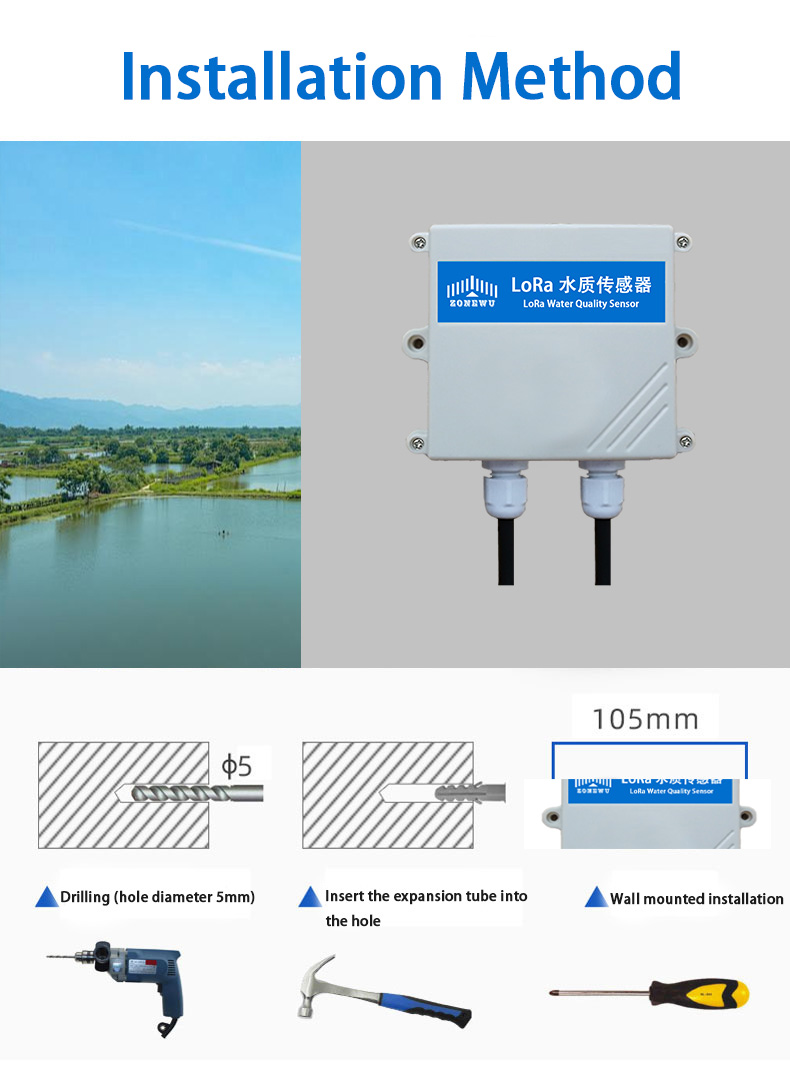

Ammonia nitrogen Transmitter Size and Installation
1. Submerged installation: The lead wire of the equipment is passed through the waterproof pipe, and the 3/4 thread on the top of the equipment is connected with the 3/4 thread of the waterproof pipe with raw material tape. Make sure that the top of the equipment and the equipment lines are free of water.
2. Pipe Installation: Connect to the pipe through the 3/4 thread of the device.
