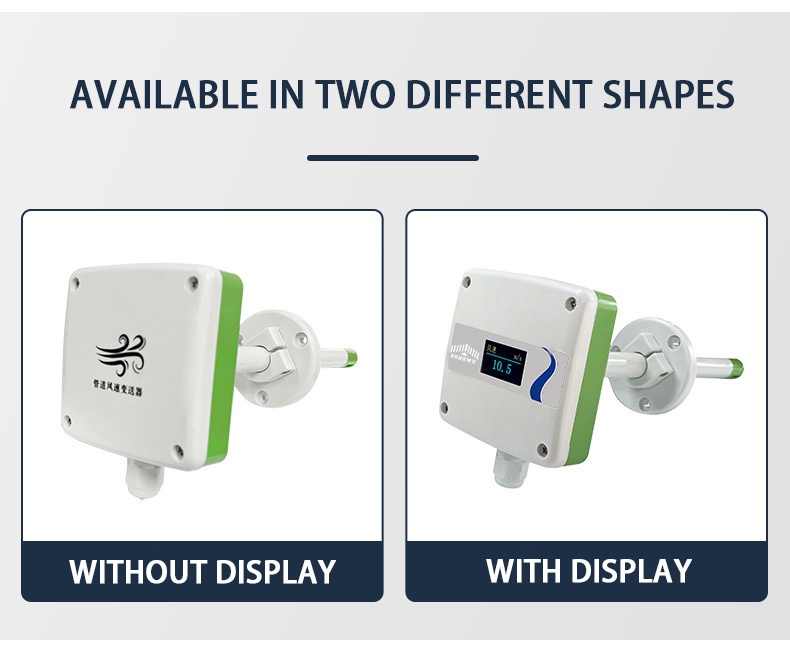

Pipe wind Speed sensor an iot sensor that supports the standard ModBusRTU protocol, the RS485 pipe wind speed transmitter detects both wind speed and air volume. Optional with LED display, the screen can be rotated to display wind speed and air volume. Is an intelligent instrument, easy to use, good performance, high reliability. It can be widely used for measuring pipe wind speed, oil fume pipe and other harsh environment.
Power Supply Mode :
10-30 VDCWeight :
150gInterface :
RS485Protocol :
ModBus-RTUPipeline Wind Speed Sensor
Pipe wind speed sensors are designed for pipe wind speed measurement. The self-developed high-precision wind speed measuring unit is sensitive and can measure small wind speed quickly and accurately, with good stability, small drift and high accuracy. The transmitter can also calculate the real-time airflow value according to the measured cross-sectional area of the pipeline. The pipe installation method facilitates field installation. The product adopts anti-interference circuit design, which can withstand all kinds of strong electromagnetic interference such as field inverter. The equipment adopts imported screw-free terminal connection, which is more convenient to use.
Technical Parameter
| DC power supply | 10-30 VDC | Range | 0-30 m/s |
| Operation Temperature | 10℃~+50℃ | Accuracy | ±0.2+2%FS）m/s |
| Long term Stability | ≤ 0.1m/s/year | Measurement Medium | Air, nitrogen, oil fume exhaust gas |
| Response Time | 2s | Output Interface | RS485 |
| Maximum Power Consumption | 0.7w | Communication Protocol | ModBus-RTU |
| Display Resolution | 0.1 m/s | Parameter Settings | software tool |
Pipeline wind speed sensor Features:
1.High-precision measurement: the pipeline wind speed sensor has a high-precision wind speed measurement unit, which can quickly and accurately measure the small wind, speed, starting wind speed is small, sensitive response. The equipment operates normally.
2.Strong anti-Interterence ability:the use or anti-interference circuit design, can withstand the rield Trequency converter and other strong electromagi interference, to ensure that the materal, even in the harsh environment performance is also stable and rellable.
3.Wide range of application: suitable for a variety of harsh environments, such as ventilation pipes, fume pipes and so on. Its shell is resistant to high temperature and corrosion.

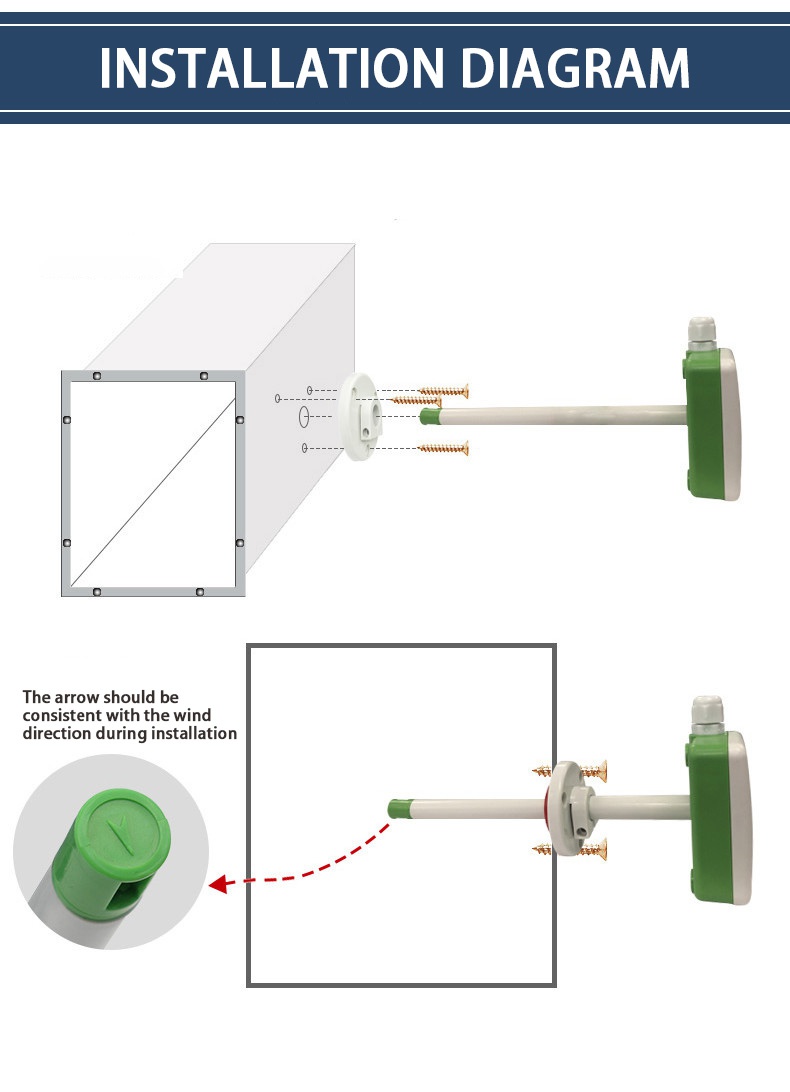

4.Easy installation: the use of open flange installation, small air leakage, durable. The installation method is simp easy to install on site. Good long-term stability: no zero drift, excellent long-term stability, cost-effective.

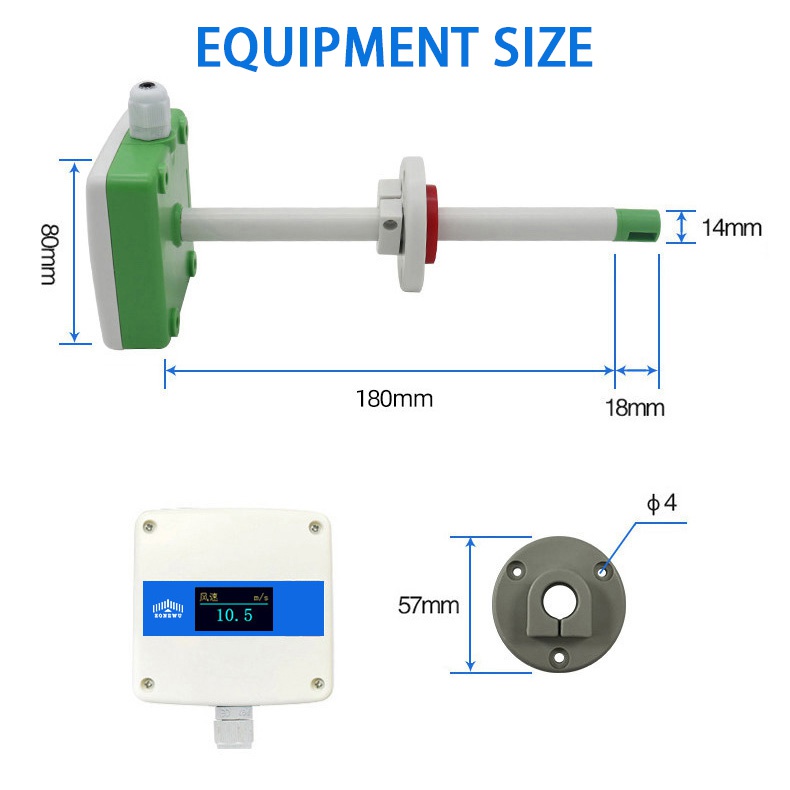

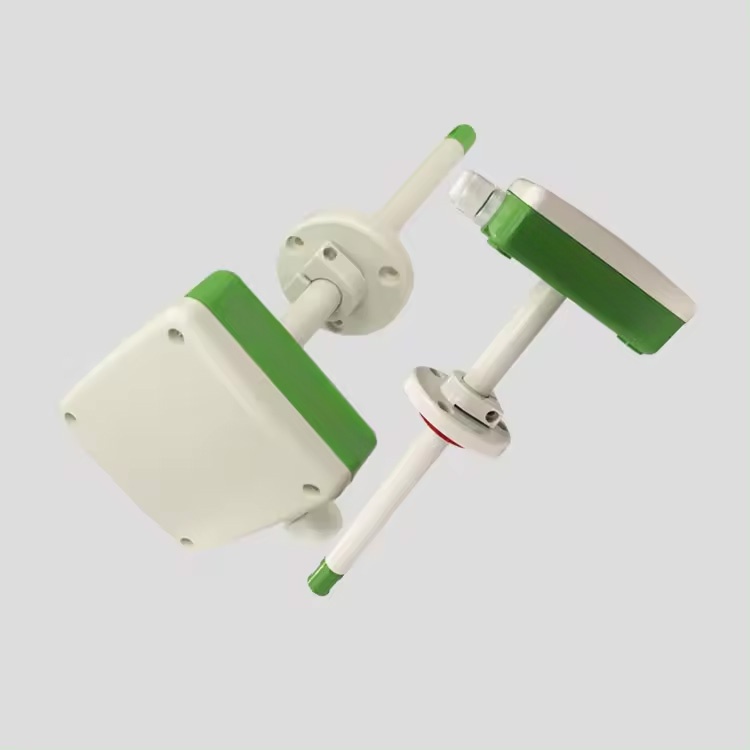

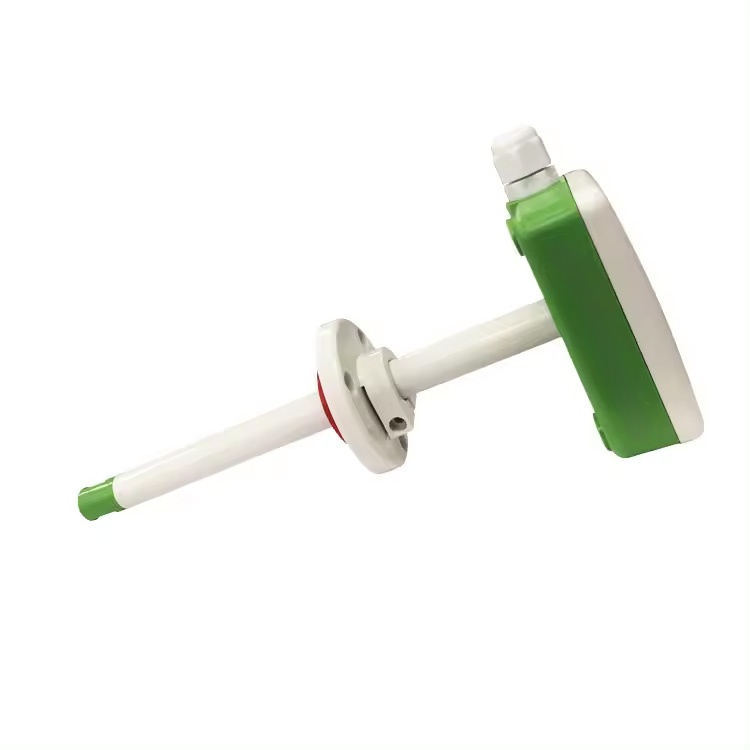

Detailed Images
