Product Model :
ZW-NO2Power Supply Mode :
10-30VDCWeight :
0.6kgInterface :
RS485Protocol :

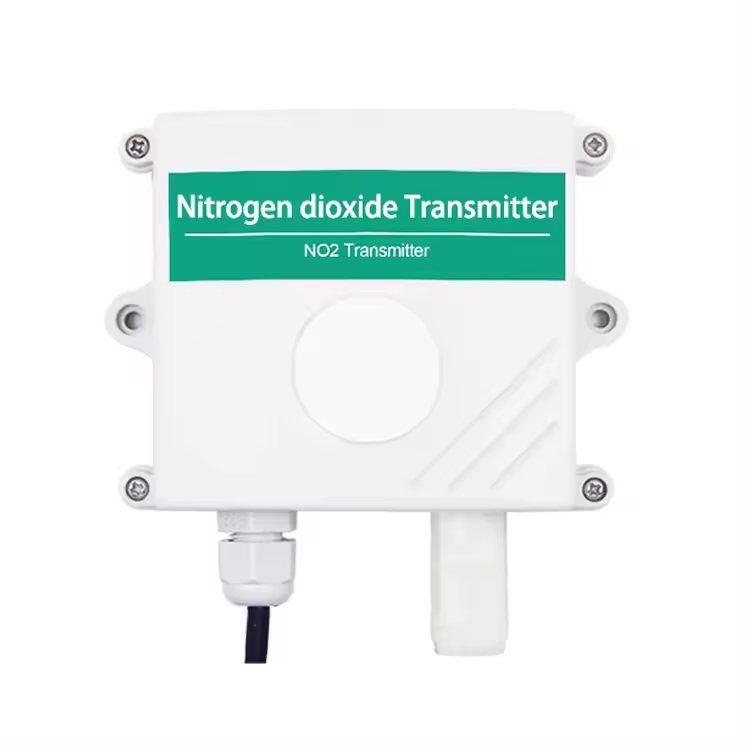

ModBusRTURS485 Nitrogen Dioxide(NO2) Transmitter
xiamen ZoneWu RS485 nitrogen dioxide(NO2) transmitter uses an imported large-brand electrochemical nitrogen dioxide sensor.
xiamen ZoneWu LoRaWAN Gas Sensor NO2 Sensor Features:
The reaction speed is especially fast, encountering changes in nitrogen dioxide concentration can react immediately, and is not afraid of external interference, and the stability is strong.
After our company's special compensation algorithm and gas calibration, the measured data is accurate and stable.
It is important to monitor nitrogen dioxide emissions in chemical production, power generation and automobile manufacturing plants.
The power supply voltage is not high, and a DC power supply of 10 to 30 volts can be used, making the supply convenient.
There are two output modes, RS485 and LoRa, which can be selected according to different needs.
The use of high-quality sensor elements ensures the overall performance of the equipment.
Product Parameters
| Power supply | 10-30VDC | Measure range | 0-20ppm(Customized) |
| Power consumption | 0.18W | Resolution | 0.01ppm |
| Temperature range | -40~ 80℃ | Humidity range | 0-100%RH |
| Temp accuracy | ±0.5℃(25℃) | Humi accuracy | ±3%RH (60%RH, 25℃) |
| Working temperature | -20~50℃ | Working humidity | 15~90%RH without condensation |
| Response time | 20ppm: ≤30S, 2000ppm: ≤60S | Stability | ≤2% signal value/month |
| Output signal | RS485 | Detection accuracy | ±5%FS |
Product Applications
It adopts high-sensitivity gas detection probe imported from the United States, has mature technology, and uses high-performance signal acquisition circuit to accurately measure PPM-level NO2 concentration, with stable signal and high accuracy.
The measurement range is 0-20.00ppm (default).
485 communication, standard ModBus-RTU communication protocol, communication address and baud rate can be set, the farthest communication distance is 2000 meters.

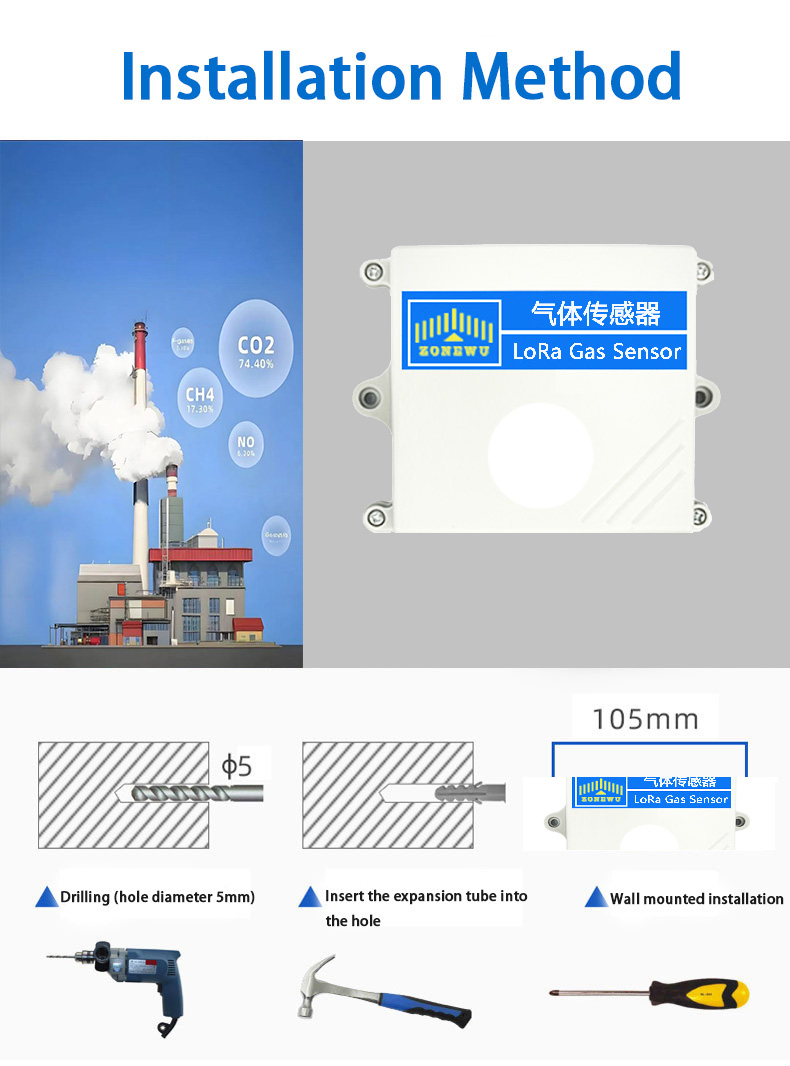

The product adopts a wall-mounted waterproof shell, which is easy to install and has a high degree of protection.

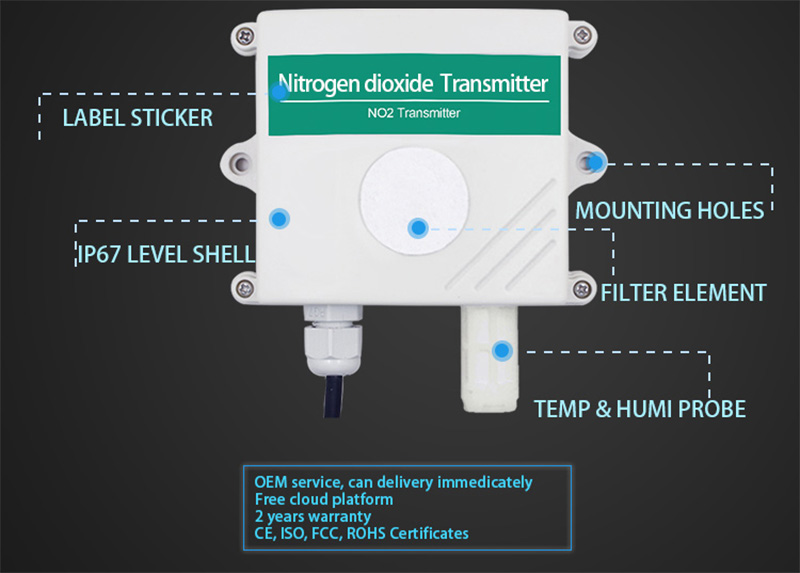

Detailed Images
Common knowledge of NO2
Where is the nitrogen dioxide sensor generally used?
It is often used in factories such as chemical production, power generation, and automobile manufacturing to monitor nitrogen dioxide emissions in these places.
How does it ensure accurate and stable measurement?
Through the unique compensation algorithm and gas calibration, the measurement data can be accurate and stable.
What are the requirements for its power supply?
Support 10-30V DC wide voltage input, the power supply requirements are not harsh.
What are the ways of outputting data?
There are RS485 and LoRa output modes to facilitate data transmission on demand.
Application Scenarios
Industrial production
Waste gas emission monitoring: Conduct real-time monitoring of industrial waste gas emissions to ensure that waste gases meet emission standards and reduce pollution to the environment.
Environmental inspection
Air quality monitoring helps people understand air quality and protect the environment and health by detecting harmful gases such as sulfur dioxide.
Safety protection
In coal mines and tunnels, gas sensors detect toxic and harmful gases such as methane and warn against accidents.
A:Yes,we can provide you with OEM services and design housings and logos.
3.DO you offer free samples?
A:Sorry,we don't offer free samples. After ordering in bulk, we will deduct the sample fee from the second order.
Why Choose ZONEWU
xiamen ZoneWu LoRaWAN NH3 sensor is a new type of IoT sensor made with LoRa wireless technology. It contains ammonia gas, temperature and humidity sensors, which can measure the ammonia gas concentration, temperature and humidity in the environment in real time, and is sensitive, accurate and stable.
Details
xiamen ZoneWu LoRaWAN Wireless CH4 Sensor is awesome! It can collect, monitor, and transmit, with a high-sensitivity methane sensor built-in, fast response, stable and durable, resistant to water vapor interference, non-toxic, replaceable catalytic combustion sensor, can be used in dust environment, based on LoRa technology communication distance is still long.
Details
xiamen ZoneWu LoRaWAN H2S gas sensor, can collect, monitor and transmit data, built-in hydrogen sulfide, temperature and humidity sensor, can measure the concentration of hydrogen sulfide, temperature and humidity in the environment in real time. It is sensitive, accurate and stable, supports the standard LoRaWAN protocol, and can communicate over long distances.
Details
xiamen ZoneWu LoRaWAN CO2 monitor, based on LoRaTM spread spectrum modulation technology, is a new type of wireless gas sensor. It has built-in carbon dioxide, temperature and humidity sensors, which can measure the carbon dioxide concentration, temperature and the humidity in the environment in real time. It has high sensitivity, high resolution, fast response, stable durability, temperature compensation, and especially stable output.
Details
xiamen ZoneWu SO2 gas detector measures concentration using electrochemical principles. Can communicate through RS485 interface, support standard ModBus RTU protocol, wide voltage adaptation range, fast response is also very sensitive.
Details
xiamen ZoneWu RS485 O3 Tansmitter uses electrochemical technology to measure ozone concentration, which is fast and sensitive, and the measured data is accurate. The voltage from 10 to 30 volts can be used, and the enclosure is well protected, and it is not afraid of even harsh environments. It also has RS485 interface, using the standard ModBus RTU protocol, communication is very convenient.
Details
xiamen ZoneWu LoRa wireless C2H4 sensor is a wireless IoT device that can collect, monitor, and transmit data. It is equipped with an ethylene, temperature, and humidity sensor, which can measure the ethylene concentration, temperature, and humidity in the environment in real time. Equipped with high-performance sensors and microprocessors, accurate detection, stable performance, low power consumption, suppois a wireless device that can be used in the Internet of Things to monitor ethylene gas in the environment. rt the standard LoRaWAN protocol, long-distance communication.
Details

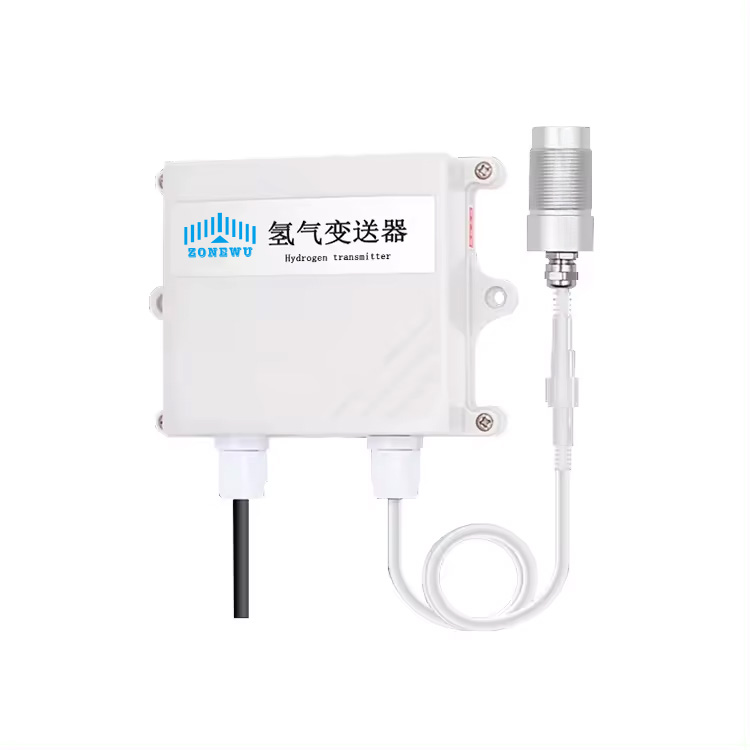

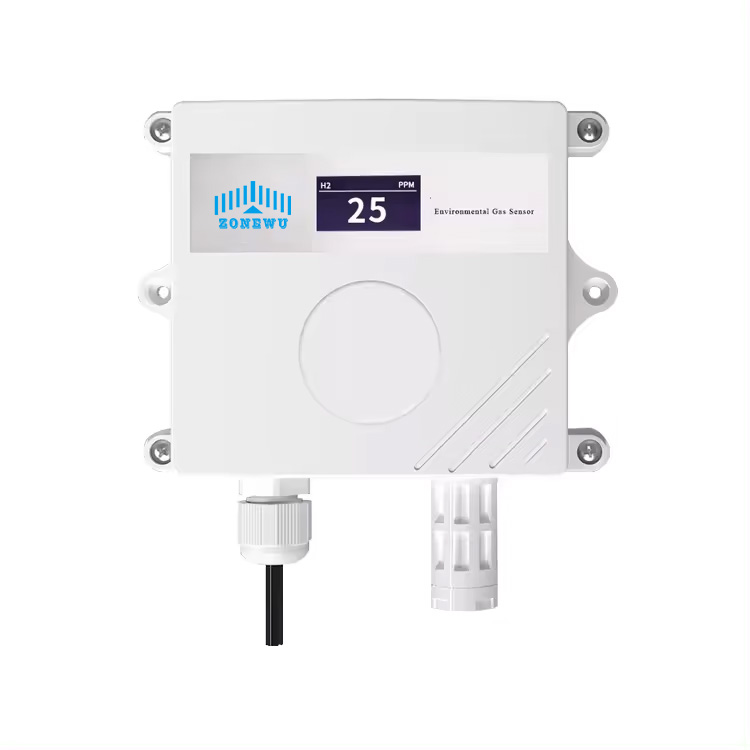

Xiamen ZoneWu RS485 H2 Transmitter, with RS485 interface, belongs to the wired IoT sensor. Using the standard ModBus RTU protocol, can set their own address and baud rate. 10 to 30 volts DC voltage can provide normal power supply, strong anti-interference ability, can be used in both environmental monitoring and industrial scenarios.
