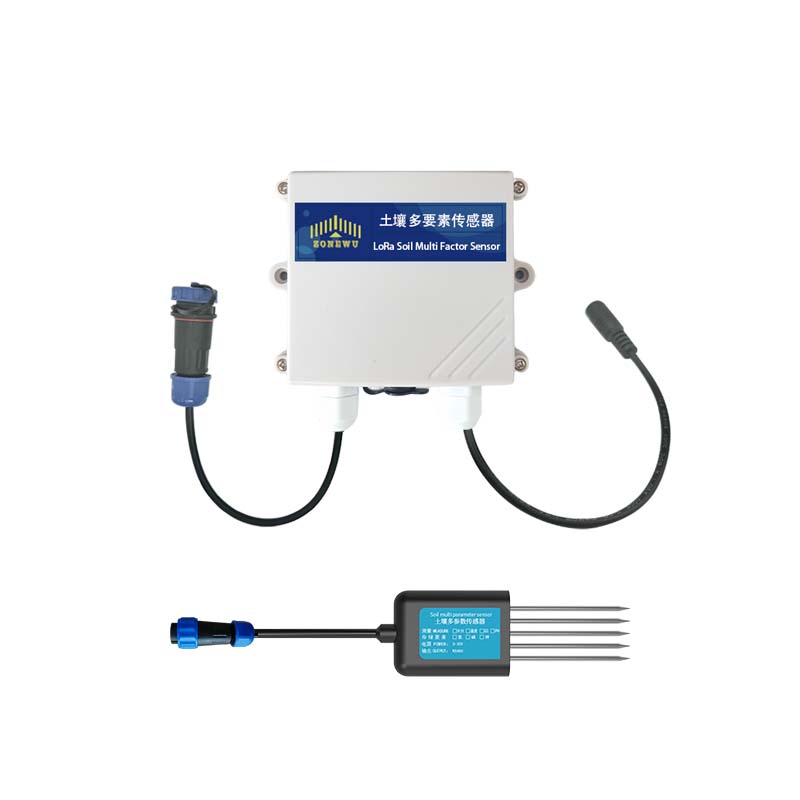

Soil Multi-element LoRaWAN Seven in One Sensor

Soil Multi-element LoRaWAN Seven in One Sensor

LoRaWAN soil multi-element seven in one sensor is a new wireless IoT sensor. It simultaneously measures seven key soil elements, such as nitrogen, phosphorus, potassium, pH value, moisture, temperature, and organic matter content. Based on LoRaWAN technology, transmit data wirelessly over long distances with low power consumption. This enables farmers to obtain comprehensive soil information in real-time, facilitating precise agricultural decision-making, improving crop growth conditions, and maximizing agricultural productivity.

  • Product Model :

    LW504-Mul
  • Power Supply Mode :

    Battery or External DC
  • Frequency :

    CN470/IN865/EU868/RU864/US915/AU915/ KR920/AS923-1&2&3&4
  • MAC Version :

    LoRaWAN 1.0.3
  • Mode :

    OTAA Class A/C
  • Weight :

    150g

Soil Multi-element LoRaWAN  Seven in One Sensor



LoRaWAN soil multi-element seven in one sensor, designed specifically for precision agriculture. It can penetrate deep into the soil and accurately detect soil temperature, humidity, conductivity in real time PH、 The nitrogen, phosphorus, and potassium content have the smallest measurement error. By adopting LoRaWAN long-distance low-power communication technology, stable data transmission can be achieved in remote farmland with low power consumption. Farmers can keep track of soil nutrient status at any time through supporting software, apply fertilizers reasonably, not only reduce costs, but also improve crop yield and quality, helping agriculture move towards intelligence and efficiency.

Technical Parameters

Power Supply

5-28 VDC

Weight

150g

Operating Emperature

0℃~60℃





Measuring Range





Humidity:0%RH-100%RH

0-50% inner soil 2%, 50-100% inner soil 3%



(brown soil, 60%. 25 ° C)

Temperature:-40°C~+80°C,±0.5℃(25°℃)

EC: 0-20000us/cm

Within the range of 0-10000 US/cm, it is ± 3%; Within the range of 10000-20000us/cm,



it is ± 5%. (Brown soil, 60% RH, 25 ° C)

PH:3-9PH

NPK: 0-1999 mg/kg(mg/L)

0-2999 mg/kg(mg/L)

≤5%

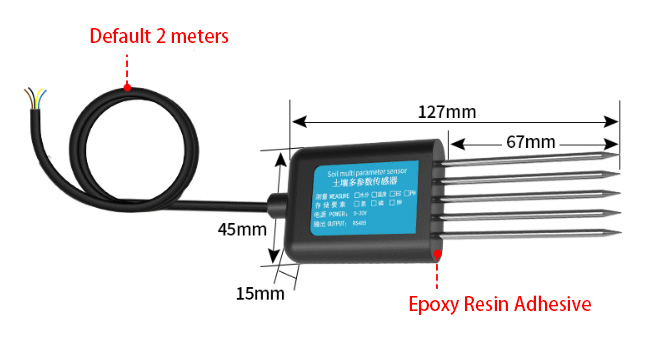

Sensor External Dimensions

45*15*127mm

Steel Needle Material

Stainless Steel

Sealing Material

Black flame retardant epoxy resin

Transmitter

Line length

Default 2m (other lengths can be customized)

Frequency

CN470/IN865/EU868/RU864/US915/AU915/

KR920/AS923-1&2&3&4

Mode

OTAA  Class C

Reporting cycle

5min(Default )

Communication Protocol

 LoRaWAN

Equipment information

(Reference)

AppEUI:0000000000000001

DevEUI:aaaa202404150001

AppKey:00001111222233334444555566667777

MAC Version:LoRaWAN 1.0.3

Detailed Images



Why Choose ZONEWU

  • Professional IoT Sensor Manufacturer
    Specializes in R&D, production, and sales of IoT sensors with strong technical expertise
  • High Quality and Reliability
    Products certified with international standards (e.g., CE, RoHS), ensuring high quality and long lifespan.
  • Wide Range of Applications
    Products serve diverse industries such as water quality monitoring, environmental monitoring, and industrial automation, offering strong market adaptability.
  • Advanced Technology
    Utilizes cutting-edge communication technologies like LoRaWAN and NB-IoT for remote, low-power data transmission.
  • Customized Solutions
    Provides tailored products and OEM/ODM services to meet diverse application needs.
