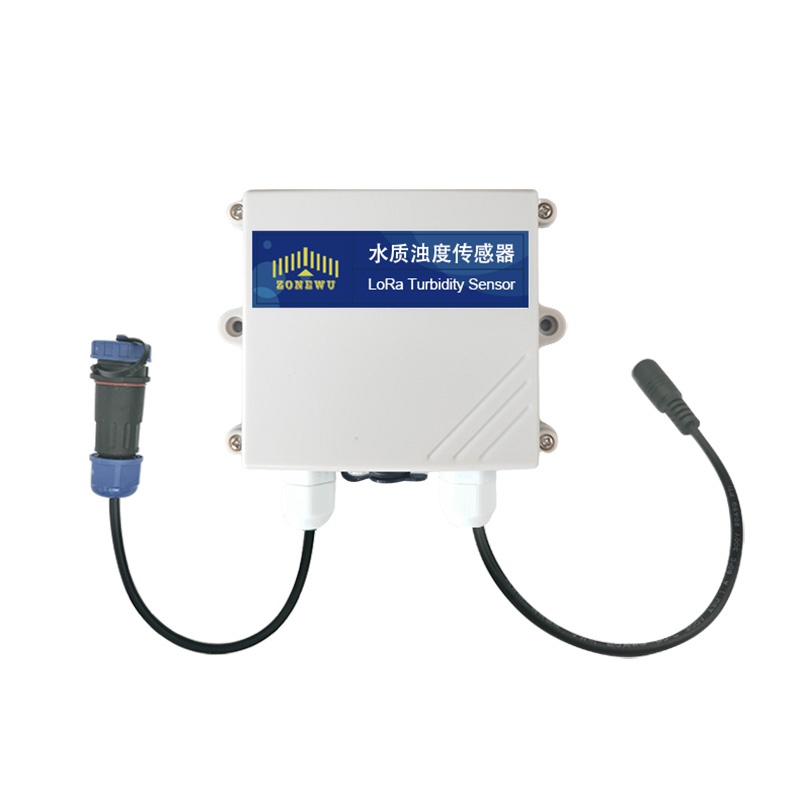

xiamen ZoneWu LoRaWAN water turbidity sensor, which combines the LoRaWAN collector and the turbidity transmitter, is a very new wireless Internet of Things sensor. It can use LoRa long-distance data transmission, real-time report your water turbidity, to help you protect water quality safety. Turbidity transmitter has unique filter arithmetic, not afraid of external interference of light, but also automatically adjust according to the temperature, it is suitable for long-term online testing of water quality, use up super worry.
Product Model :
LW105-TBPower Supply Mode :
Battery or External DCFrequency :
CN470/IN865/EU868/RU864/US915/AU915/ KR920/AS923-1&2&3&4MAC Version :
LoRaWAN 1.0.3Mode :
OTAA Class A/CWeight :
200gStable Wireless LoRaWAN Water Quality Turbidity Sensor
xiamen ZoneWu LoRaWAN water quality turbidity sensor LoRaWAN water turbidity sensor, is a very basic, very common water quality monitoring equipment, can measure the turbidity of water, output digital signal.
xiamen ZoneWu LoRaWAN water quality Turbidity Sensor Features:

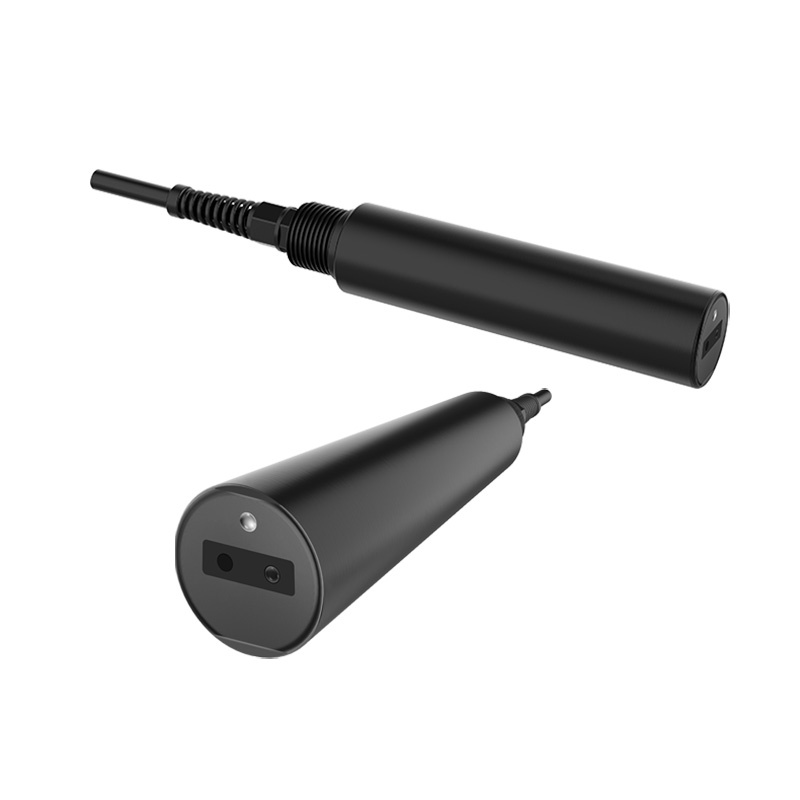

Measurement principle: using 90° scattered light principle.
Light path design: infrared LED light source, optical fiber conduction light path.
Anti-interference: filter arithmetic, strong anti-interference of light.
Temperature compensation: Built-in temperature transmitter, automatic temperature compensation, suitable for long-term online monitoring.
Protocol Support: LoRaWAN Collector supports the standard LoRaWAN protocol.
Connection method: The collector and transmitter can be connected using aviation connectors.
Product Parameters
|
Power Supply |
ER26500 Li-SOCl2 8500 mAh battery,3.6V |
|
Weight |
200g |
|
Operating Emperature |
0~40℃ |
|
Measuring Range |
0.00~50.00NTU 0.0~200.0NTU 0.0~1000.0NTU(Default ) 0~4000NTU |
|
Measurement Error |
±5%FS（25℃） |
|
Resolution Ratio |
0.01PH |
|
Temperature measurement range |
0~40℃,Resolution Ratio:0.1℃ (When manually compensating for temperature, it is set to 25 ℃ by default.) |
|
Electrode usage cycle |
Normal use for 2 years |
|
Pressurization |
0.6Mpa |
|
Transmitter Line length |
Default 5m (other lengths can be customized) |
|
Frequency |
CN470/IN865/EU868/RU864/US915/AU915/ KR920/AS923-1&2&3&4 |
|
Mode |
OTAA Class A |
|
Reporting cycle |
60min(Default ) |
|
Battery Life |
≤3 years （Depending on the reporting cycle） Note: Due to the high power consumption of EC sensor, it is not recommended to use shortcycle data reporting. |
|
Communication Protoco |
LoRaWAN,LoRa TDMA Networking |
|
Equipment information (Reference) |
AppEUI：0000000000000001 DevEUI：aaaa202404150001 AppKey：00001111222233334444555566667777 MAC Version：LoRaWAN 1.0.3 |

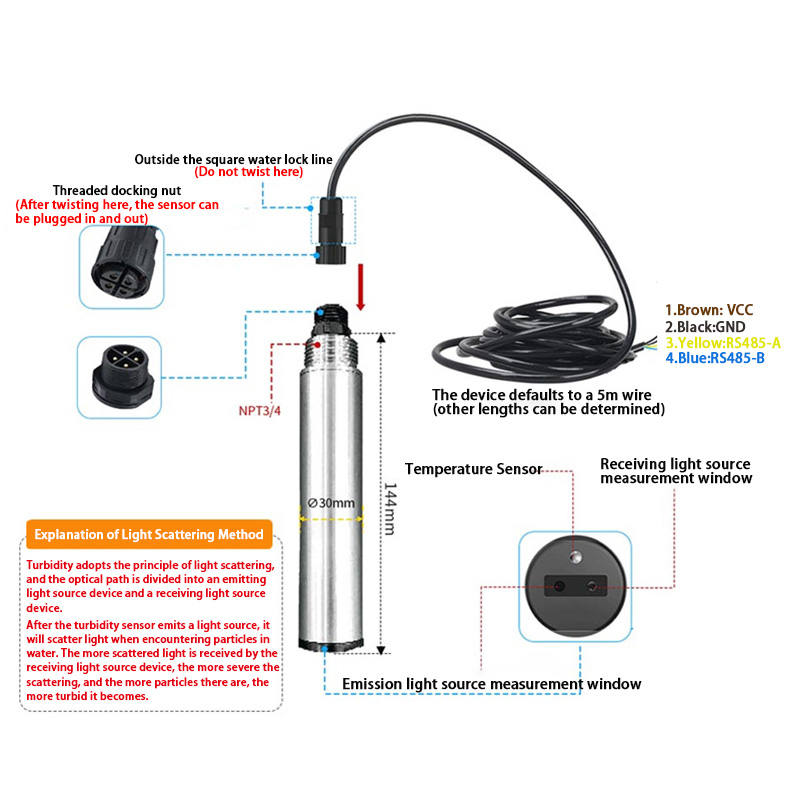

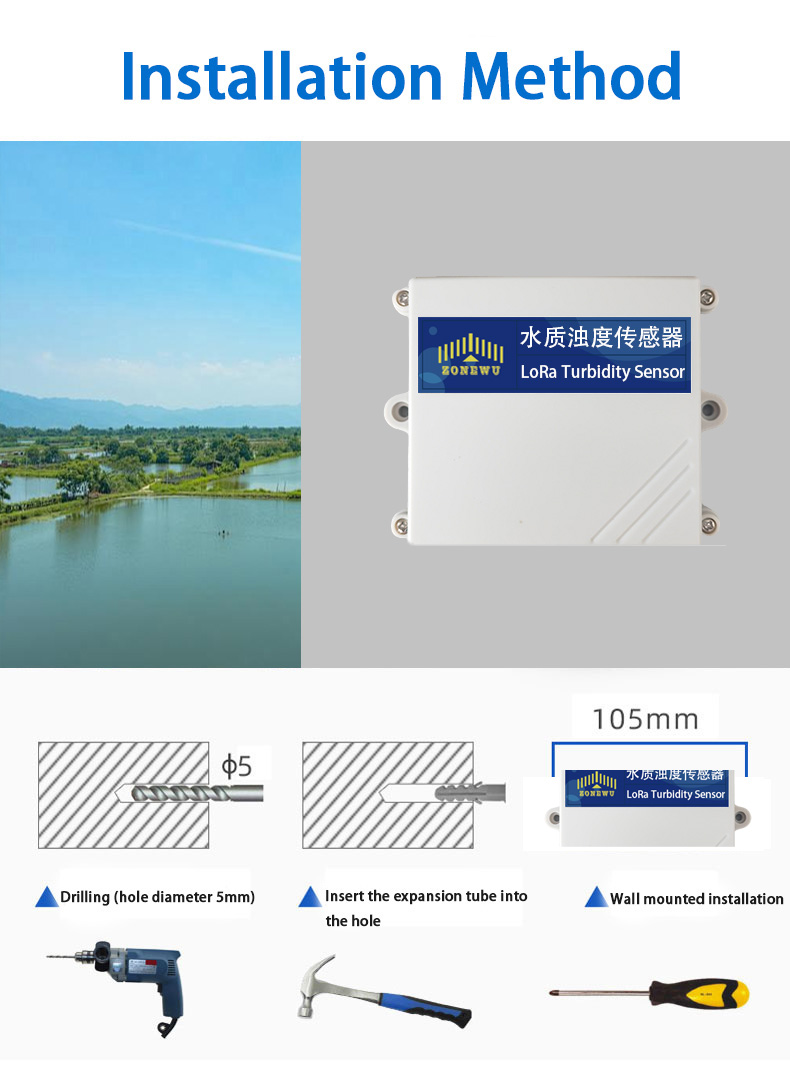

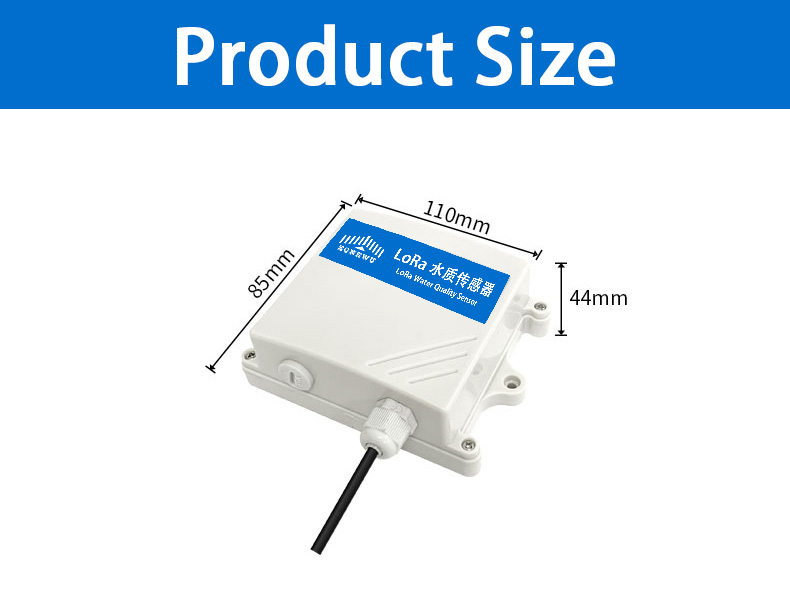

Turbidity Transmitter Size and Installation
1. Submerged installation: The lead wire of the equipment is passed through the waterproof pipe, and the 3/4 thread on the top of the equipment is connected with the 3/4 thread of the waterproof pipe with raw material tape. Make sure that the top of the equipment and the equipment lines are free of water.
2. Pipe Installation: Connect to the pipe through the 3/4 thread of the device.
Common knowledge of turbidity
What happens when you don't deal with turbidity
Due to the fact that the suspended and colloidal particles that make up turbidity are mostly charged, they will not settle without chemical treatment.
What are the requirements for turbidity depending on the different uses of water
The turbidity of drinking water should not exceed 1 NTU;
The turbidity of the supplementary water for circulating cooling water treatment is required to be between 2-5NTU;
The turbidity of the influent (raw water) treated with desalinated water should be less than 3NTU;
The manufacturing of artificial fibers requires a water turbidity of less than 0.3NT;
In nature, the turbidity of river water generally ranges from tens of NTU to hundreds of NTU.
Application Scenarios

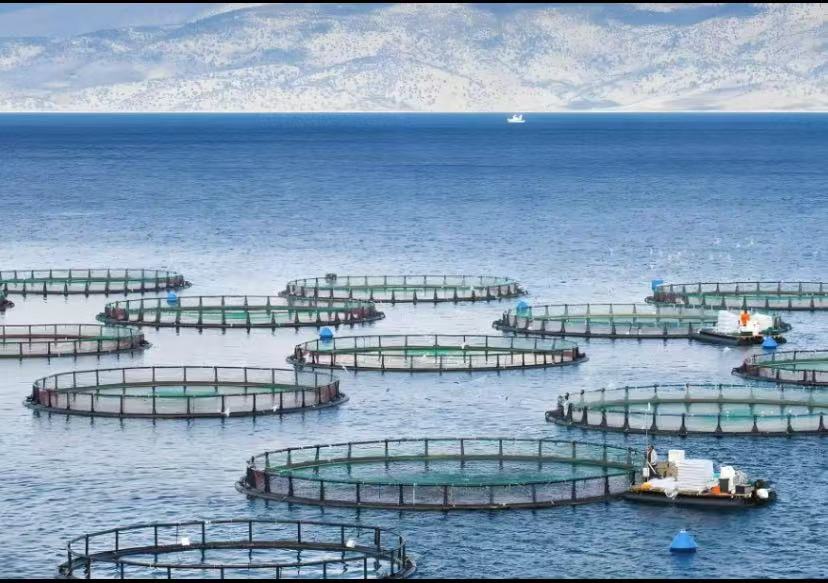

Aquaculture
Monitor the calcium ion concentration of aquaculture bodies to ensure the health of aquaculture organisms and the stability of water quality.
Seawater Monitoring
Monitoring the concentration of calcium ions in seawater is conducive to marine ecological research and the regulation of seawater aquaculture.
Seawater Monitoring
Monitoring the concentration of calcium ions in seawater is conducive to marine ecological research and the regulation of seawater aquaculture.
A:Yes,we can provide you with OEM services and design housings and logos.
3.DO you offer free samples?
A:Sorry,we don't offer free samples.After ordering in bulk,we will deduct the sample fee from the second order.
