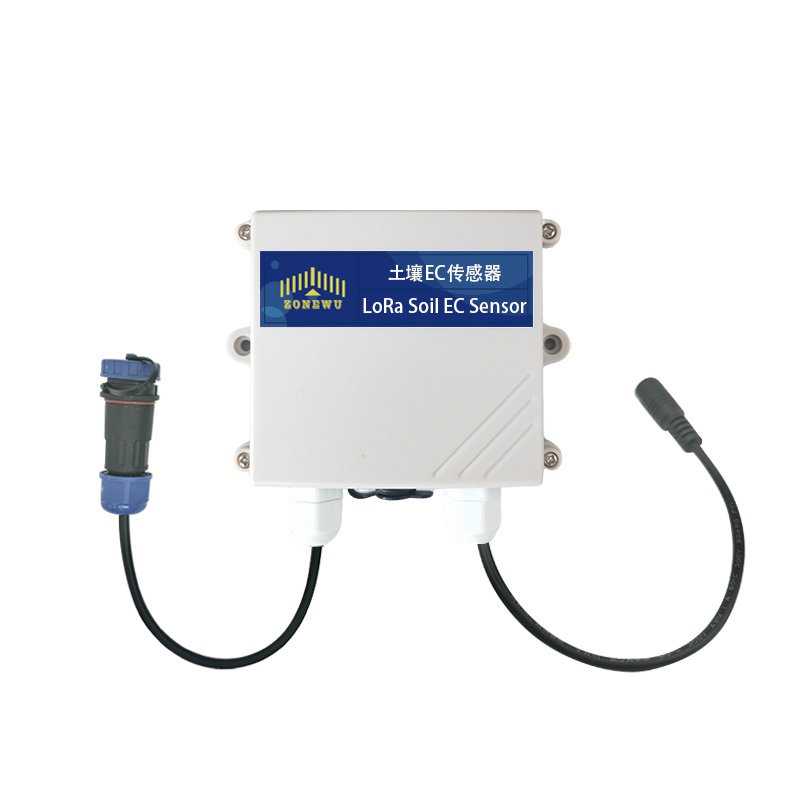

Wireless LoRa Soil Electrical Conductivity Sensor is a three in one wireless IoT sensor with stable performance and high sensitivity. By measuring the dielectric constant of soil, the true moisture content of various soils can be directly and stably reflected. The volumetric percentage of soil moisture that can be measured is a soil moisture measurement method that meets current international standards. Support standard LoRaWAN protocol to achieve wireless remote communication.
Product Model :
LW501-ECPower Supply Mode :
Battery or External DCFrequency :
CN470/IN865/EU868/RU864/US915/AU915/ KR920/AS923-1&2&3&4MAC Version :
LoRaWAN 1.0.3Mode :
OTAA Class A/CWeight :
120gWireless LoRa Soil Electrical Conductivity Sensor
LoRa Soil EC Sensor is a wireless IoT sensor that integrates data collection, monitoring, and transmission. It accurately measures soil conductivity and can also measure soil temperature and moisture. Using aviation connectors and LoRaWAN collectors, based on LoRa technology, wireless remote low-power communication is achieved, which can quickly send data to the central system. In agriculture, it helps users to accurately manage irrigation and fertilization, preventing overuse of resources. It is also applied in horticulture and environmental monitoring to ensure optimal soil conditions for plant growth and ecological balance.
Technical Parameters
Power Supply |
ER26500 Li-SOCl2 8500 mAh battery,3.6V |
Weight |
200g |
Operating Emperature |
-40℃~+60℃ |
Soil EC Parameters
|
Range: 0-20000μS/cm |
Resolution: 10μS/cm |
|
Accuracy: ± 3% FS within the range of 0-10000 μ S/cm; ± 5% FS within the range of 10000-20000 μ S/cm, @ (brown soil, 60%, 25 ℃) |
|
Soil Moisture Parameters
|
Range:0-100% |
Resolution: 0.1% |
|
Accuracy: 0-50% ± 2%, @ (brown soil, 30%, 25 ℃); 50-100% ± 3%, @ (brown soil, 60%, 25 ℃) |
|
Soil Temperature Parameters
|
Range:-40~+80℃ |
Resolution: 0.1℃ |
|
Accuracy:±0.5℃(25℃) |
|
Conductivity Temperature Compensation |
Built in temperature compensation sensor, compensation range 0-50 ℃ |

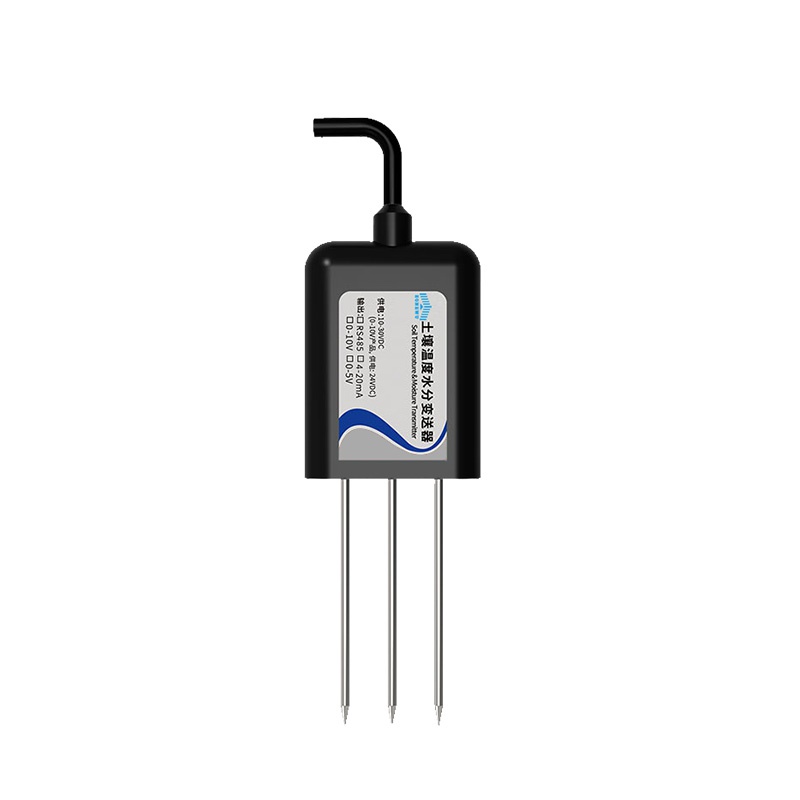

Probe Material |
Anti corrosion special electrode |
Transmitter Line length |
Default 2m (other lengths can be customized) |
Frequency |
CN470/IN865/EU868/RU864/US915/AU915/ KR920/AS923-1&2&3&4 |
Mode |
OTAA Class A |
Reporting cycle |
60min(Default ) |
Battery Life |
≤3 years (Depending on the reporting cycle) Note: Due to the high power consumption of Soil EC Sensor, it is not recommended touse short cycle data reports. |
Communication Protocol |
LoRaWAN,LoRa TDMA Networking |
Equipment information (Reference) |
AppEUI:0000000000000001 DevEUI:aaaa202404150001 AppKey:00001111222233334444555566667777 MAC Version:LoRaWAN 1.0.3 |
Technical characteristics of soil conductivity sensor
1. High precision: Soil conductivity sensors have high-precision measurement capabilities and can accurately reflect changes in soil conductivity. 2. Quick response: Sensors can quickly respond to changes in soil conductivity and provide real-time data updates.
3. Sealed and durable: Sensors usually have good sealing properties, can be directly buried in soil for use, are not affected by corrosion, and are suitable for long-term monitoring.
4. Real time monitoring: With real-time monitoring function, it can measure the conductivity of soil at different depths and provide comprehensive soil information.
5. Strong anti-interference ability: The equipment adopts electrical isolation design, which can resist complex interference situations on site and ensure accurate and reliable measurement data.
