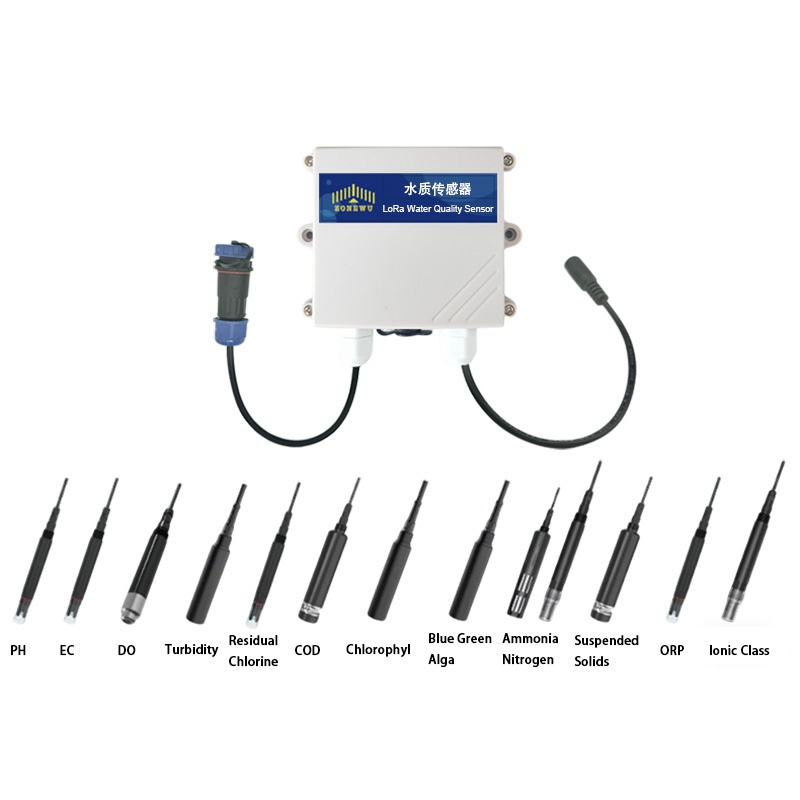

Wireless Water Quality ORP Sensor

Wireless Water Quality ORP Sensor

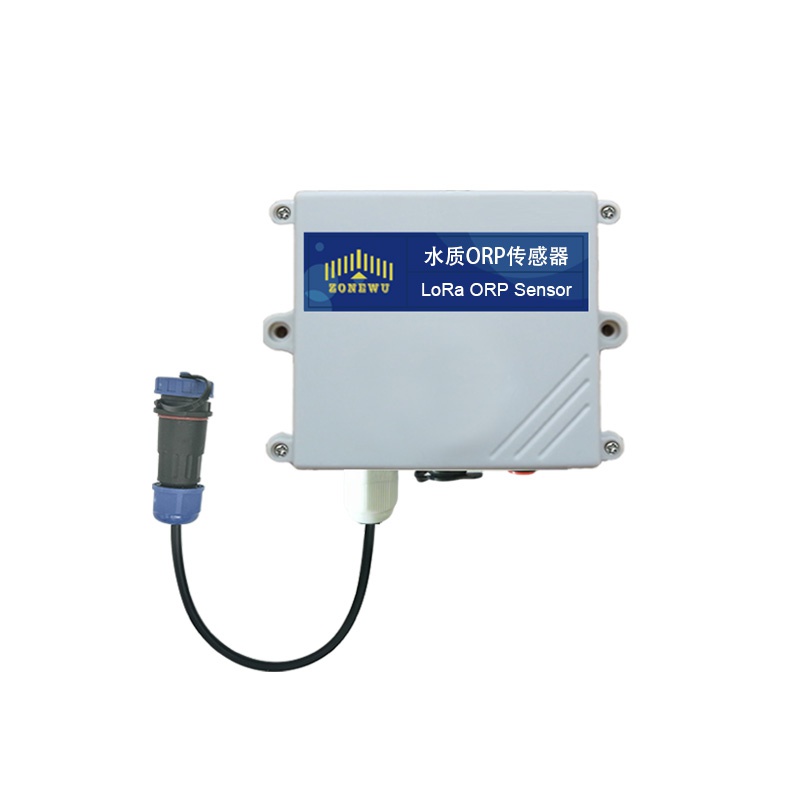

xiamen ZoneWu LoRaWAN wireless water quality ORP sensor  is a super powerful new wireless IoT sensor. Its electrodes are made of high purity platinum, resistant to acids and alkalis and oxidation, and the measurement data is fast, accurate and stable. Data can be transmitted using LoRa, and the distance is far. It can provide ORP data in real time to help us maintain water quality and make the oxidation and reduction of water normal. Industrial water treatment, aquaculture, environmental monitoring, these can be used.

  • Product Model :

    LW103-ORP
  • Power Supply Mode :

    Battery or External DC
  • Frequency :

    CN470/IN865/EU868/RU864/US915/AU915/ KR920/AS923-1&2&3&4
  • MAC Version :

    LoRaWAN 1.0.3
  • Mode :

    OTAA Class A/C
  • Weight :

    200g

 Wireless Water Quality ORP Sensor



xiamen ZoneWu LoRaWAN water quality ORP sensor is used to measure the oxidation-reduction potential of water.

Xiamen ZoneWu LoRaWAN water quality ORP sensor Features:

ORP sensor electrode, is made of high-purity platinum composite electrode, acid and alkali resistance, oxidation resistance.



The measurement accuracy is high, the reaction speed is fast, the data is stable, and temperature can be measured.





It uses an all-in-one design, and the structure is simple and light.



Connected through an aviation connector and a LoRaWAN collector, using LoRaWAN to transmit data.



 It is very convenient to use.



 It can monitor the oxidation-reduction potential of cyanide-containing and chromium-containing industrial wastewater, natural water bodies, and aquaculture environments online.



Technical Parameters

Power Supply

ER26500 Li-SOCl2 8500 mAh battery,3.6V

Weight

200g

Working Conditions

0~60℃

Measuring Range

-1999~1999mV

Measurement Error

≤±5mV(25 ℃, 222mv standard solution)

Resolution Ratio

1mV

Temperature measurement range

0~60℃,Resolution Ratio:0.1℃

Electrode usage cycle

12 months

Pressurization

0.6Mpa

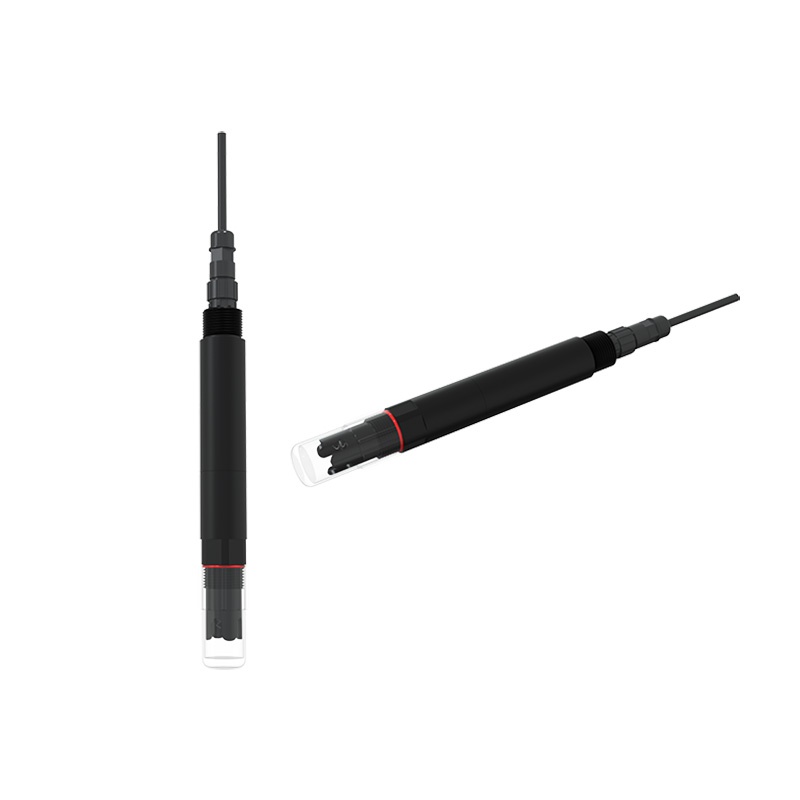

ORP Transmitter

Line length

Default 5m (other lengths can be customized)

Frequency

CN470/IN865/EU868/RU864/US915/AU915/

KR920/AS923-1&2&3&4

Mode

OTAA  Class A

Reporting cycle

60min(Default )

Battery Life

≤3 years (Depending on the reporting cycle)

Note: Due to the high power consumption of EC sensor, it is not recommended to

use short cycle data reporting.

Communication Protocol

LoRaWAN,LoRa TDMA Networking

Equipment information

(Reference)

AppEUI:0000000000000001

DevEUI:aaaa202404150001

AppKey:00001111222233334444555566667777

MAC Version:LoRaWAN 1.0.3

Product Applications
1. Natural water monitoring: Through real-time monitoring, changes in water quality can be detected in a timely manner, warning of water pollution and deterioration risks, thereby ensuring the health and sustainable use of water bodies.
2. Monitoring of drinking water sources: Ensure the safety of water quality in drinking water sources and prevent the occurrence of pollution incidents. Ensure effective killing of pathogenic microorganisms in water.

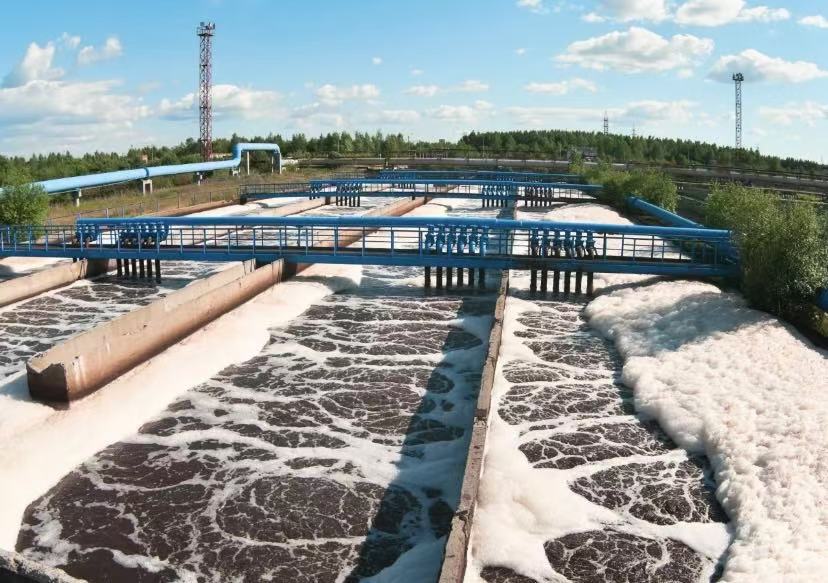

3. Sewage treatment: Optimize the sewage treatment process, reduce operating costs, and improve effluent quality.
4. Industrial production and quality control: In industries such as chemical, pharmaceutical, and food processing, ORP monitoring ensures that the water quality during the production process meets requirements, guaranteeing product quality and equipment safety.
5. Agriculture and Aquaculture: Ensure water quality suitable for plant growth and aquatic animal survival in agricultural irrigation and aquaculture.

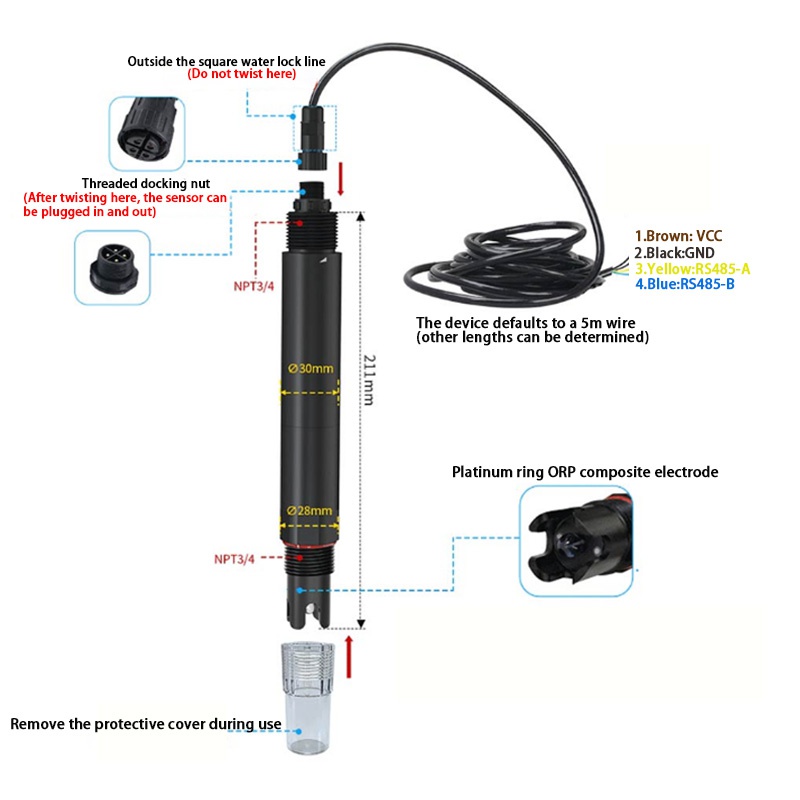

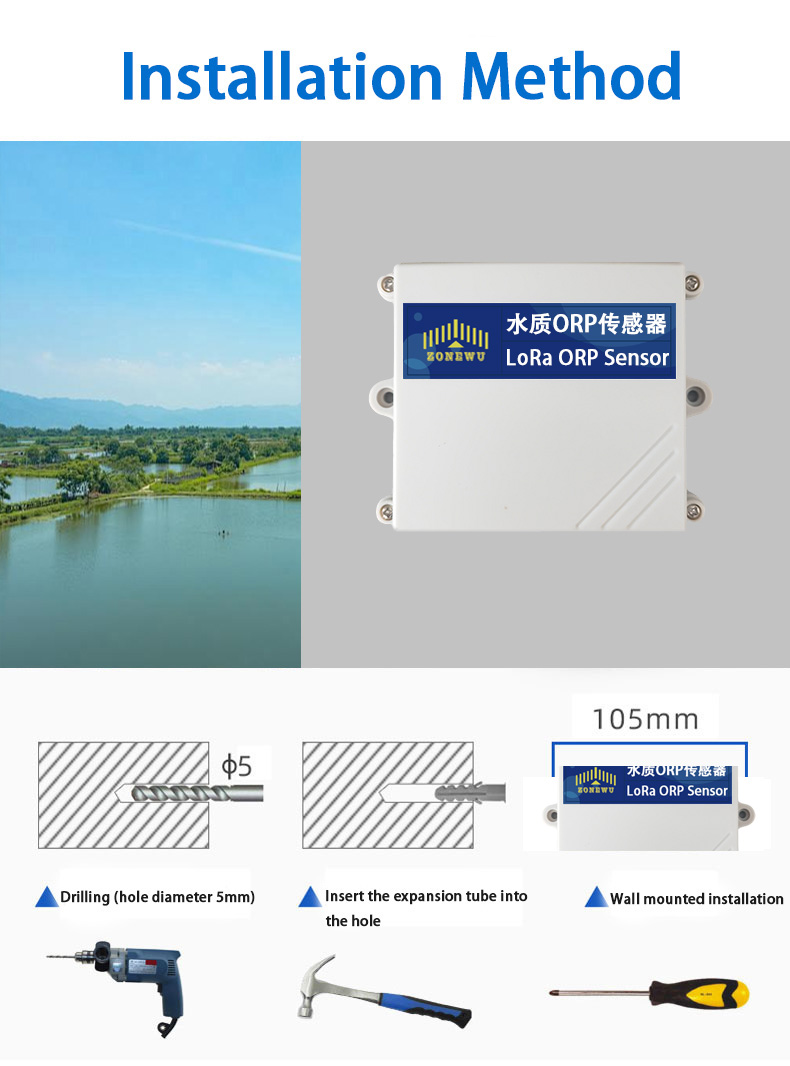

ORP Transmitter Size and Installation

1. Submerged installation: The lead wire of the equipment is passed through the waterproof pipe, and the 3/4 thread on the top of the equipment is connected with the 3/4 thread of the waterproof pipe with raw material tape. Make sure that the top of the equipment and the equipment lines are free of water.

2. Pipe Installation: Connect to the pipe through the 3/4 thread of the device.

Common knowledge of conductivity ORP

What is ORP

ORP stands for the oxidation-reduction potential of a solution and is an important indicator of water quality. It cannot independently judge the quality of water, but can comprehensively reflect the ecological environment in aquatic systems based on other water quality indicators.



What does a high or low oxidation reduction mean

The higher the oxidation-reduction potential, the stronger the oxidizing property, and the lower the potential, the weaker the oxidizing property.



What do the positive and negative potentials represent?

A positive potential indicates that the solution exhibits certain oxidizing properties, while a negative potential indicates that the solution exhibits reducing properties.



What does ORP do

Indirectly reflects the degree of concentration accumulation of substances such as nitric acid in water.

Monitor the oxidation efficiency of microorganisms in the filtration process.

Reflects the concentration of certain inorganic substances in water and the status of aquatic organisms.



Application Scenarios

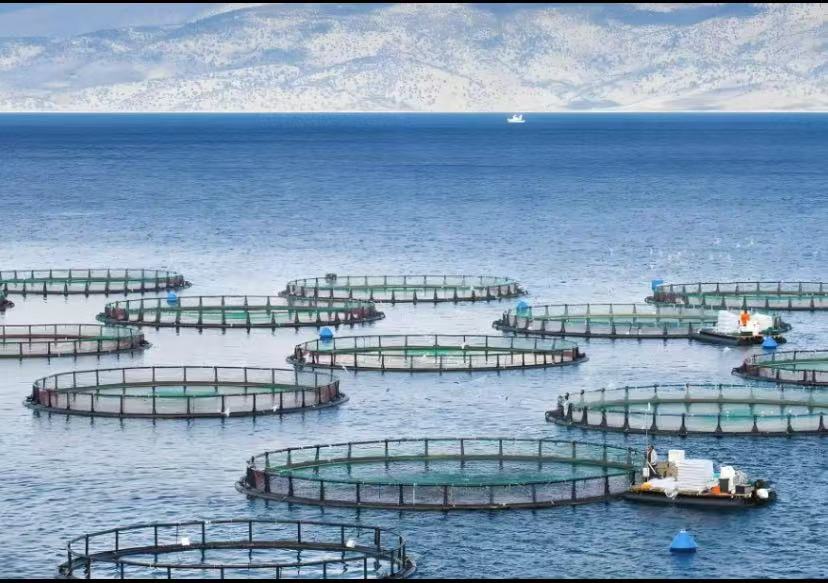

Aquaculture

Monitor the calcium ion concentration of aquaculture bodies to ensure the health of aquaculture organisms and the stability of water quality.



Seawater Monitoring

Monitoring the concentration of calcium ions in seawater is conducive to marine ecological research and the regulation of seawater aquaculture.

Industrial Wastewater

Monitoring the concentration of calcium ions in industrial wastewater helps with wastewater treatment and achieving compliance with discharge standards.



FAQ

1.Are you manufacture?
A:Yes,we are Tranmitter manufacturer and exporter in China with more than 10 years of CE,ROHS,FCC,ISO and 11 patents experience.

2.Do you offer OEM services?

A:Yes,we can provide you with OEM services and design housings and logos.



3.DO you offer free samples?

A:Sorry,we don't offer free samples.After ordering in bulk,we will deduct the sample fee from the second order.



Why Choose ZONEWU

  • Professional IoT Sensor Manufacturer
    Specializes in R&D, production, and sales of IoT sensors with strong technical expertise
  • High Quality and Reliability
    Products certified with international standards (e.g., CE, RoHS), ensuring high quality and long lifespan.
  • Wide Range of Applications
    Products serve diverse industries such as water quality monitoring, environmental monitoring, and industrial automation, offering strong market adaptability.
  • Advanced Technology
    Utilizes cutting-edge communication technologies like LoRaWAN and NB-IoT for remote, low-power data transmission.
  • Customized Solutions
    Provides tailored products and OEM/ODM services to meet diverse application needs.



leave a message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Related Products

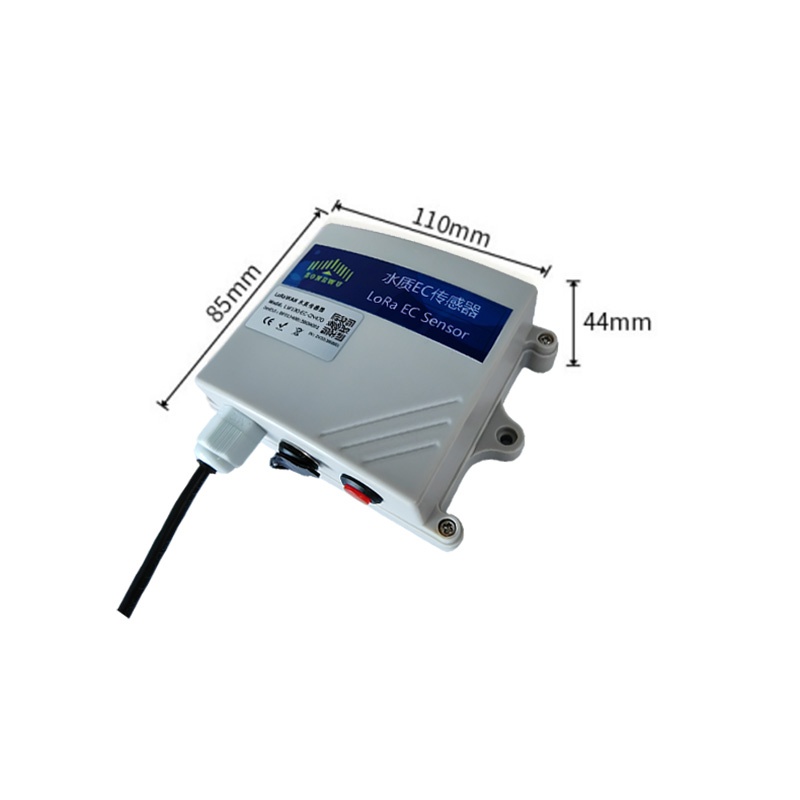

LoRaWAN Water Quality EC Sensor
